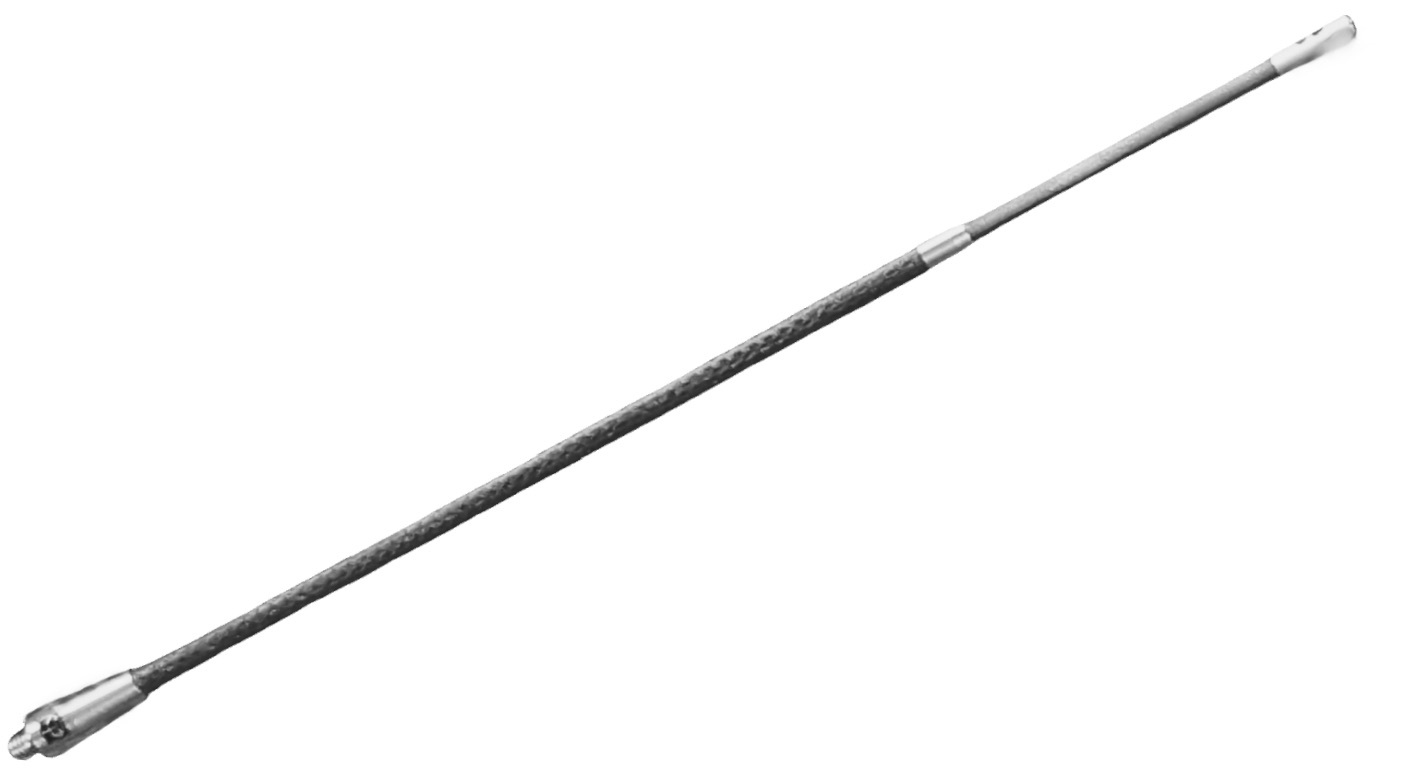

Renishaw 200mm Carbon Fiber M4 to M2 Thread Extension & Adapter A-5003-0566

Product Description

* * * This Carbon Fiber Extension & Adapter is a Special and not stocked by Renishaw * * *

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging.

Country of Manufacture:   UNITED KINGDOM

Brand:    RENISHAW

Model:    M4 THREAD CARBON FIBER EXTENSION

MPN:   A-5003-0566

Item Description

Carbon Fiber

Exensions & Adapters

A few simple rules can be applied to maximize accuracy for most probing applications.

Technical Table

Overall Length

Renishaw uses a standard description of overall length, measured from the rear mounting face of the stylus to the centre of the ball.

Effective Working Length (EWL)

This is measured from the centre of the ball to the point at which the stem will foul against the feature when measuring 'normal' to the part.

Rules for Choosing a Stylus

A few simple rules for stylus selection can be applied to maximize accuracy for most probing applications

Keep Styli Short

The more the stylus bends or deflects, the lower the accuracy. Probing with the minimum stylus length for your application is the best option.

Minimise Joints

Every time you join styli and extensions, you introduce potential bending and deflection points. Try, wherever possible, to keep to the minimum number of pieces possible for your application.

Keep the stylus ball as large as possible

There are several reasons for this:

• it maximises your ball/stem clearance, thereby reducing the chance of false triggers caused by 'shanking out' on the stylus stem, and increasing the EWL;
• a larger ball allows a larger stem diameter, increasing the stiffness of the stylus;
• the larger ruby ball reduces the effect of the surface finish of the component being inspected.

EWL can also be affected by assembly tolerances. For this reason Renishaw styli are assembled to exacting standards in controlled conditions.

This is by far the best price you will find on a Renishaw 200mm Carbon Fiber M4 to M2 Thread Adapter

& Extension New with 1 Year Warranty. Purchase with confidence from a Paypal verified retailer. If what

you order is not what you receive you will be refunded the full purchase price of this sale. Metrology

Parts would like the opportunity to earn your business for this sale and all of your future Renishaw

needs. If you have any questions feel free to contact us. With 36 plus years of experience with Renishaw

products we can help with all of your application needs as well as your after sales support.
