We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: EKL KIT 1
MPN: A-1047-7005
New In Box Renishaw Touch Probe Extension Bar Set for Coordinate Measuring Machines With 1 Year Warranty.
Compatible Heads:
PH10T PLUS - MH8 - PH6 - PH1 - PHS1
Compatible Probes:
TP20 - TP200 - TP6 - TP2

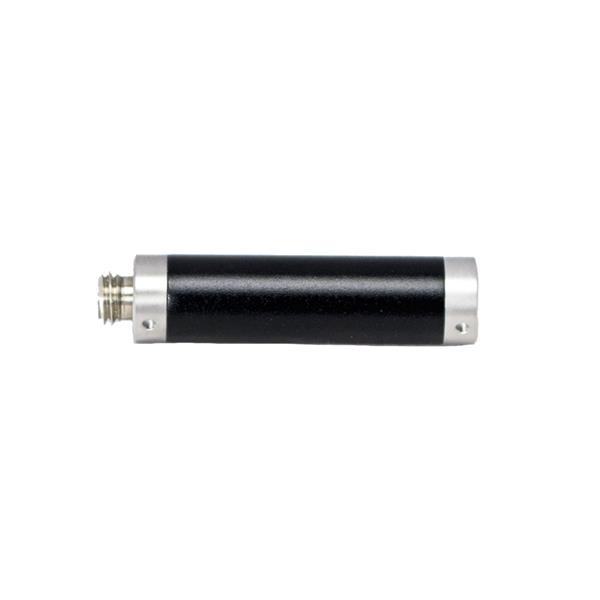

PEL M8 to M8 extension bars, provide extended reach to standard two-wire touch-trigger probes when used with M8 heads, for example TP20 to PH10T or MH8. PEL extension bars are manufactured from aluminium and available in four lengths.
The PEL1 is suited to the majority of applications that require an additional 50 mm of reach.

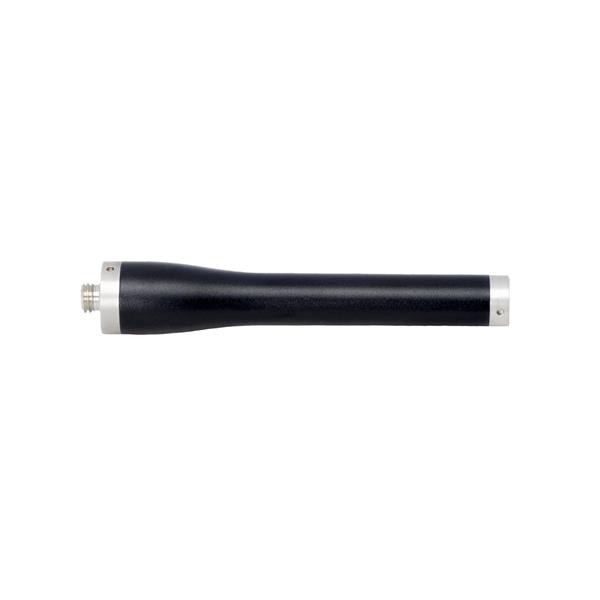

PEL M8 to M8 extension bars, provide extended reach to standard two-wire touch-trigger probes when used with M8 heads, for example TP20 to PH10T or MH8. PEL extension bars are manufactured from aluminium and available in four lengths.
The PEL2 is suited to the majority of applications that require an additional 100 mm of reach.

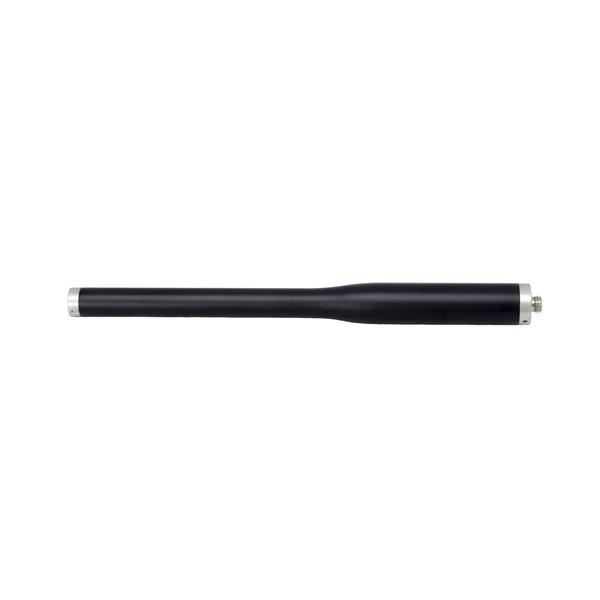

PEL M8 to M8 extension bars, provide extended reach to standard two-wire touch-trigger probes when used with M8 heads, for example TP20 to PH10T or MH8. PEL extension bars are manufactured from aluminium and available in four lengths.
The PEL3 is suited to the majority of applications that require an additional 200 mm of reach
What is a Stylus?
In principle, styli are the CMM’s “tools”, providing the same relationship that turning tools have with lathes, and milling and boring tools have with milling machines.
When measuring with a touch-trigger probe, the machine uses the stylus to take the data points on the surface of the work piece.
Each touch generates a point that is defined using coordinate values in X, Y and Z. Feature, size, form and position can then be computed from these points.
By contrast a scanning probe takes continuous readings along the surface of a work piece. Sophisticated software uses this data to compute the size, position and form of features on the component.
At a basic level, the choice of stylus always
relates to the connecting thread on your
coordinate measuring machine’s sensor – M5 usually M2, M3, M4 or M5.
Why pay retail prices when you can purchase with 1 Year Warranty from Metrology Parts. Purchase with
confidence from a Paypal verified retailer. If what you order is not what you receive you will be
refunded the full purchase price for this sale. Metrology Parts would like the opportunity to earn your
business for this sale and all of your future Renishaw needs. If you have any questions feel free to
contact us. With 36 plus years of experience with Renishaw products we can help with all of your
application needs as well as your after sales support.
