Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: PEL1 PEL2 PEL3
MPN: A-1047-3486 A-1047-3485 A-1047-3484
Item Description
Renishaw Touch Probe Extension Bar Set Fully Tested with 90 Day Warranty.
Compatible Heads:
PH10T PLUS - MH8 - PH6 - PH1 - PHS1
Compatible Probes:
TP20 - TP200 - TP6 - TP2
PEL M8 to M8 extension bars, provide extended reach to standard two-wire touch-trigger probes when used with M8 heads, for example TP20 to PH10T or MH8. PEL extension bars are manufactured from aluminium and available in four lengths.
The PEL1 is suited to the majority of applications that require an additional 50 mm of reach.
PEL M8 to M8 extension bars, provide extended reach to standard two-wire touch-trigger probes when used with M8 heads, for example TP20 to PH10T or MH8. PEL extension bars are manufactured from aluminium and available in four lengths.

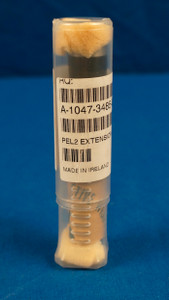

The PEL2 is suited to the majority of applications that require an additional 100 mm of reach.
PEL M8 to M8 extension bars, provide extended reach to standard two-wire touch-trigger probes when used with M8 heads, for example TP20 to PH10T or MH8. PEL extension bars are manufactured from aluminium and available in four lengths.
The PEL3 is suited to the majority of applications that require an additional 200 mm of reach
What is a Stylus?
In principle, styli are the CMM’s “tools”, providing the same relationship that turning tools have with lathes, and milling and boring tools have with milling machines.
When measuring with a touch-trigger probe, the machine uses the stylus to take the data points on the surface of the work piece.
Each touch generates a point that is defined using coordinate values in X, Y and Z. Feature, size, form and position can then be computed from these points.
By contrast a scanning probe takes continuous readings along the surface of a work piece. Sophisticated software uses this data to compute the size, position and form of features on the component.
At a basic level, the choice of stylus always
relates to the connecting thread on your
coordinate measuring machine’s sensor – M5 usually M2, M3, M4 or M5.
