Item Description

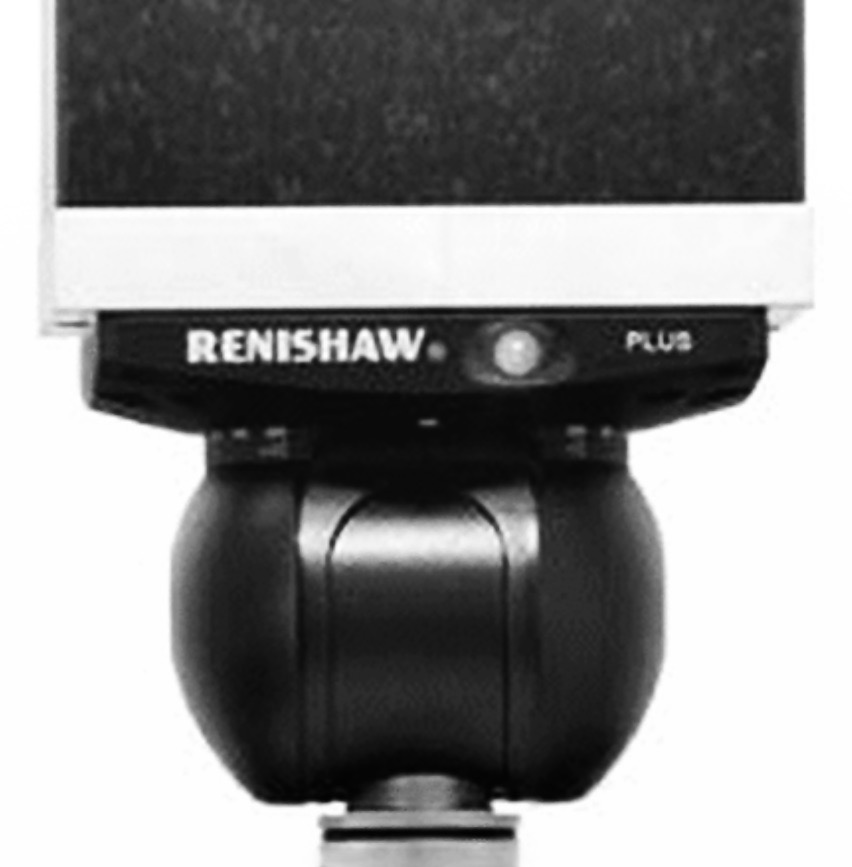

Renishaw PH10MQ PLUS Motorized Probe Head and PHC10-3 PLUS Probe Head Controller New with 2 Year Warranty.
About PH10
The range comprises three PH10 models, each of which can carry a range of probes and extensions and can be orientated in 720 repeatable positions, giving access to the most difficult-to-reach workpiece features.
All three variants of the new PH10 heads are now supplied with a revised repeatability specification, down from 0.5 µm (2?) to just 0.4 µm (2?) (specified at a distance of 62 mm), giving users improved positioning at the stylus tip. The new specification heads are physically differentiated by a new ‘aqua blast’ finish which gives a modern, matt black appearance.
The PH10MQ is a variant of the PH10M that allows the motorised head to be attached directly to the quill with the B axis of the head inside the quill itself. This option provides a neater and shorter probe mount, with only the A axis protruding from the quill.
| Length | 73 mm |
| Width | 80 mm |
| Weight | 730 g |
| Probe mounting | Autojoint (multiwire) |
| Head mounting | Direct to quill |
| Suitable controller | PHC10-3 PLUS |
| Repeatability of position | 0.4 µm (0.00002 in) specified at a distance of 62 mm |
| Total no. of positions | 720 |
| Max recommended drive torque | 0.45 Nm |
| Maximum extension bar | 300 mm (11.8 in) using PAA3 extension |
PHC10-3 PLUS Head Controller
PHC10-3 head controller receives instructions from the CMM control. The PHC10-3 controls all head functions and reports system status to the CMM:
* Drives PH10 (PH10T, PH10M or PH10MQ) to position - sent either from the HCU1 or CMM * Checks and reports position * Flags up errors, e.g. failure to reach position, obstruction before or after locking etc * The PHC10-3 does not process any of the probe sensor signals. These are railed clean through the heads axes and controller to the probe interface. *
| Length | 180 mm |
| Width | 440 mm |
| Height | 44 mm |
| Weight | 1.5 Kg |
| Data transmission | RS232 or USB |
| Current Consumption (at 240V) |
less than 1 A |
| PSU electrical ratings |
Supply voltage: 100-240 V ± 10% Frequency range: 50/60 Hz Power consumption: 49 W max. Transient voltages: Installation category II |
| Input connectors | 15 way 'D' |
| Power supply | 24 V DC 49 W provided by the Emerson PSU (DP4024N3M) power adaptor |
| Probe output connectors | 7-pin DIN or 9-way 'D' type |
|
Maximum cable length |
|
| Hand held control unit | HCU1 HCU2 |
This is by far the best price you will find on a Renishaw PH10MQ PLUS Motorized Probe and PH10-3
PLUS Probe Head Controller. Why pay retail prices when you can purchase new with 2 Year Warranty
from Metrology Parts. Purchase with Paypal from Metrology Parts a Paypal verified retailer. If what you
order is not what you receive you will be refunded the full purchase price for this sale. Metrology Parts
would like the opportunity to earn your business for this sale and all of your future Renishaw product
needs. If you have any questions feel free to contact us. With 36 plus years of experience with Renishaw
products we can help with all of your application needs as well as your after sales support.
