We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging.
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: PH10T PHC10-3 TP20
MPN: A-1025-1520 A- A-1025-0050 A-1036-0001 A-5684-0100

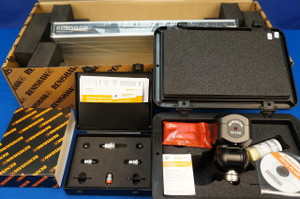

Renishaw PH10T Motorized Probe Head, Renishaw PHC10-3 Probe Head Controller (which has now replaced the PHC10-2) and Renishaw TP20 Modular Touch Probe System with 3 Probe Modules New with 1 Year Warranty.
Renishaw List $29804.00
The range comprises three PH10 models, each of which can carry a range of probes and extensions and can be orientated in 720 repeatable positions, giving access to the most difficult-to-reach workpiece features.
All three variants of the new PH10 heads are now supplied with a revised repeatability specification, down from 0.5 µm (2?) to just 0.4 µm (2?) (specified at a distance of 62 mm), giving users improved positioning at the stylus tip. The new specification heads are physically differentiated by a new ‘aqua blast’ finish which gives a modern, matt black appearance.
The PH10T is similar to the PH10M, except that it features an M8 thread probe mount in place of the autojoint.
All M8 threaded probes, such as TP20 and TP200, and extension bars fit directly onto the head. The PH10T is fully compatible with all of Renishaw's stylus and module change systems.
| Length | 103 mm |
| Width | 62 mm |
| Weight | 645 g |
| Probe mounting | M8 thread (2 wire) |
| Head mounting | Shank to suit CMM |
| Suitable controller | PHC10-2 |
| Repeatability of position | 0.4 µm (0.00002 in) specified at a distance of 48 mm (equivalent to a TP2 and PS1R stylus) |
| Total no. of positions | 720 |
| Max recommended drive torque | 0.45 Nm |
| Maximum extension bar | 300 mm (11.8 in) using PEL4 extension |
PHC10-3 head controller receives instructions from the CMM control. The PHC10-3 controls all head functions and reports system status to the CMM:
Drives PH10 (PH10T, PH10M or PH10MQ) to position - sent either from the HCU1 or CMM.
Checks and reports position
Flags up errors, e.g. failure to reach position, obstruction before or after locking etc.
The PHC10-3 does not process any of the probe sensor signals. These are railed clean through the heads axes and controller to the probe interface.
PHC10-3 specification
| Length | 180 mm |
| Width | 440 mm |
| Height | 44 mm |
| Weight | 1.5 Kg |
| Data transmission | RS232 or USB |
| Current Consumption | less than 1 A |
| PSU electrical ratings | Supply voltage: 100-240 V ± 10% |
| Input connectors | 15 way 'D' |
| Power supply | 24 V DC 49 W provided by the Emerson PSU (DP4024N3M) power adaptor |
| Probe output connectors | 7-pin DIN or 9-way 'D' type |
| Maximum cable length |
|
| Hand held control unit | HCU1 only |
About TP20
The TP20 is a compact 5-way, or 6-way, kinematic touch-trigger probe system. The two-piece design, comprising probe body and detachable stylus module(s), connected using a highly repeatable magnetic kinematic coupling. This provides the facility to change stylus configurations either manually or automatically without the need for requalification of the stylus tips, thereby giving significant time savings in inspection routines.Modules offering a range of trigger forces allow the probe performance to be best matched to the measurement task. A set of probe extensions is also available, as is a 6-way module. The stylus mounting thread accepts styli from the Renishaw M2 range.The TP20 system is easily retrofitted and is compatible with existing touch trigger probe interfaces, extensions and adaptors.
PH10M or PH10MQ can be shipped for the same price. PHC10-3 supports both RS232 and USB communication. Please specify which modules you would like for the TP20 Probe Kit , Low force,
Medium force, Standard force, or Extended force in any combination.
All components in this sale are new and in unopened boxes with 1 Year Warranty. All items will be ordered from the factory for you which is why we have a 5 day handling time. Please contact us
should your application require custom cables for your installation. We also offer partial refunds for probing that you have replaced with this system.
This is by far the best price you will find on a Renishaw PH10T motorized probe PHC10-3 probe head controller and TP20 touch probe system with 3 probe modules of your choice. Why pay retail prices when you can purchase new with warranty from Metrology Parts. Purchase with with confidence from Metrology Parts a Paypal verified retailer. If what you order is not what you receive you will be refunded the full purchase price for this sale. Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw product needs. If you have any questions feel free to contact us. With 36 plus years of experience with Renishaw products we can help with all of your application needs as well as your after sales support.
