Renishaw CMM RSP2 V2 REVO Probe Display Model with 6 Month Warranty

Product Description

Condition:

New other/ Display Model: An item in excellent, new condition with no functional defects. The item does not come in original packaging but includes a 6 Month Warranty.

Country of Manufacture:   UNITED KINGDOM

Brand:   RENISHAW

Model:   RSP2 V2 REVO PROBE

MPN:   A-3060-0028

Item Description

Renishaw CMM RSP2 V2 REVO Probe Display Model with 6 Month Warranty.

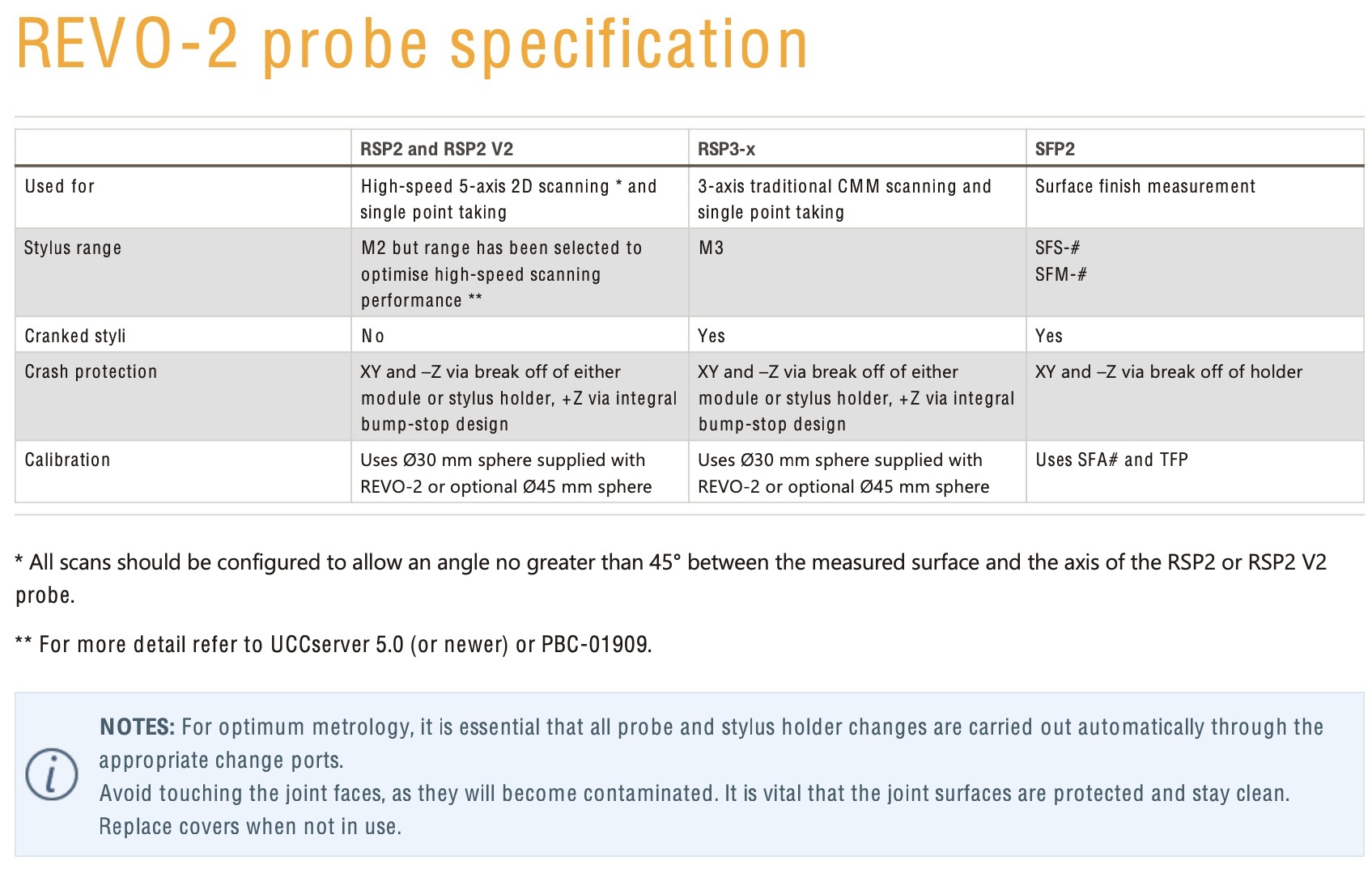

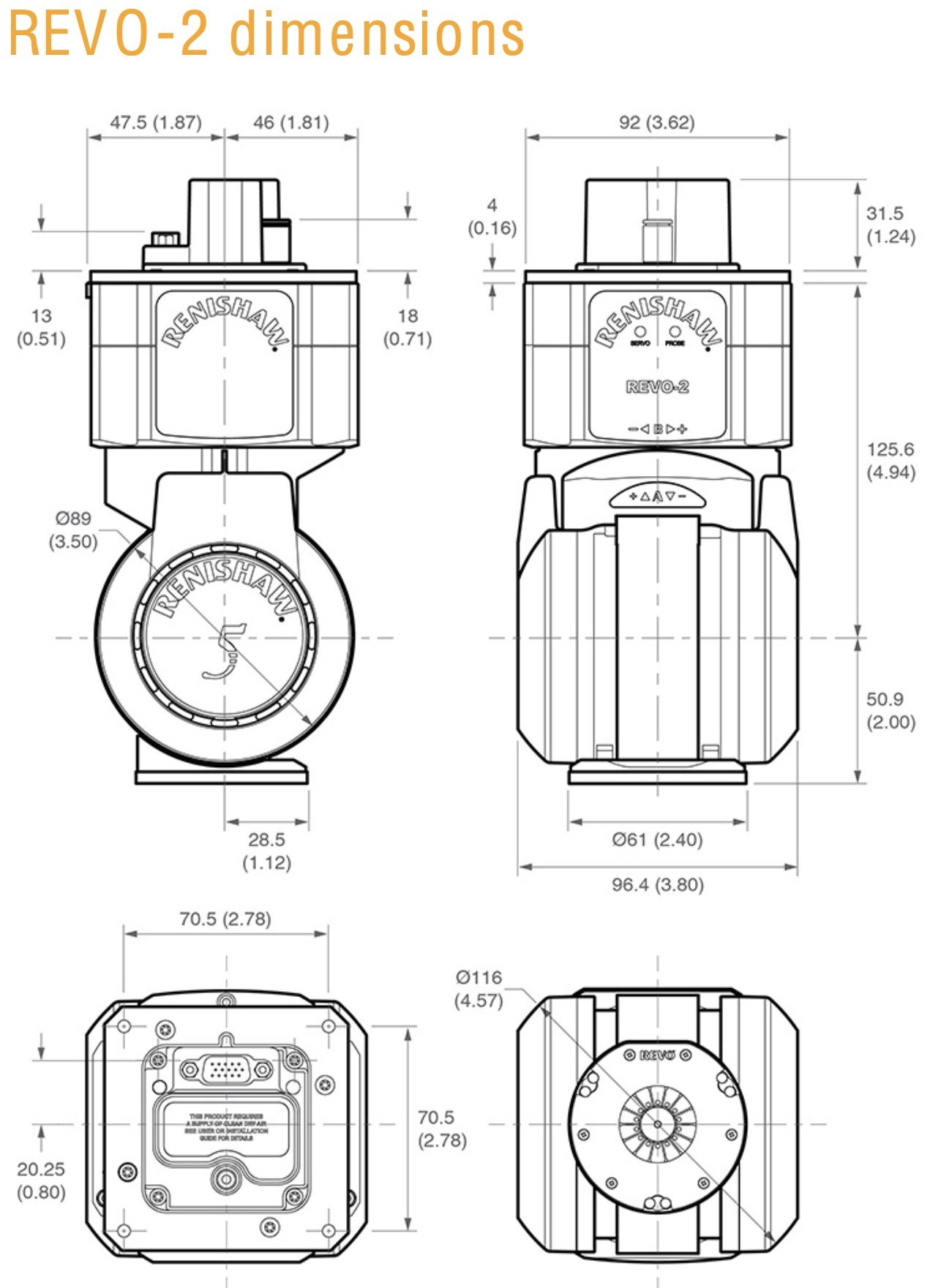

REVO-2 System Description

REVO-2 is a dynamic measuring head and probe system from Renishaw. It is a revolutionary product designed to maximise measurement throughput whilst maintaining high system accuracy.

Unlike conventional scanning methods which rely on speeding up the motion of the CMM axes to allow them to measure faster, REVO-2 uses the head motion for most of the motion needed during fast measurement, leaving the CMM for slow linear motion, hence minimising dynamic errors.

UCCserver is software that accompanies the Renishaw UCC family of controllers. It is used for tasks such as sensor calibration and organization as stipulated by the I++ DME protocol.

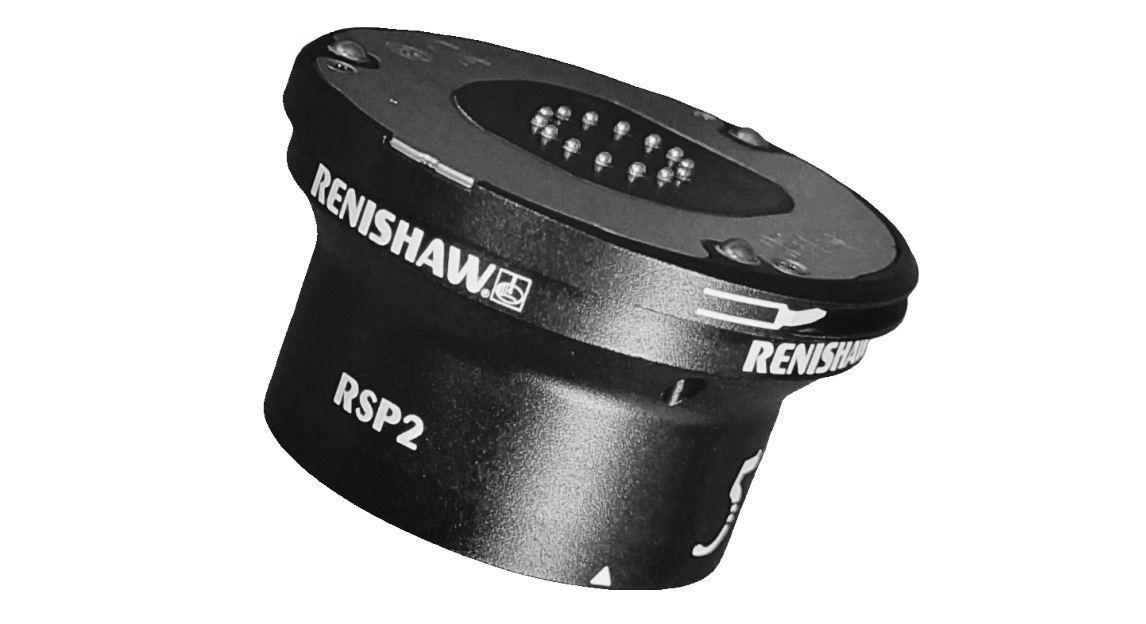

RSP2 REVO Scanning Probe

RSP2 is a dedicated lightweight tip-sensing probe for use on REVO-2 systems, capable of 2D scanning (x, y) and 3D touch-trigger measurement

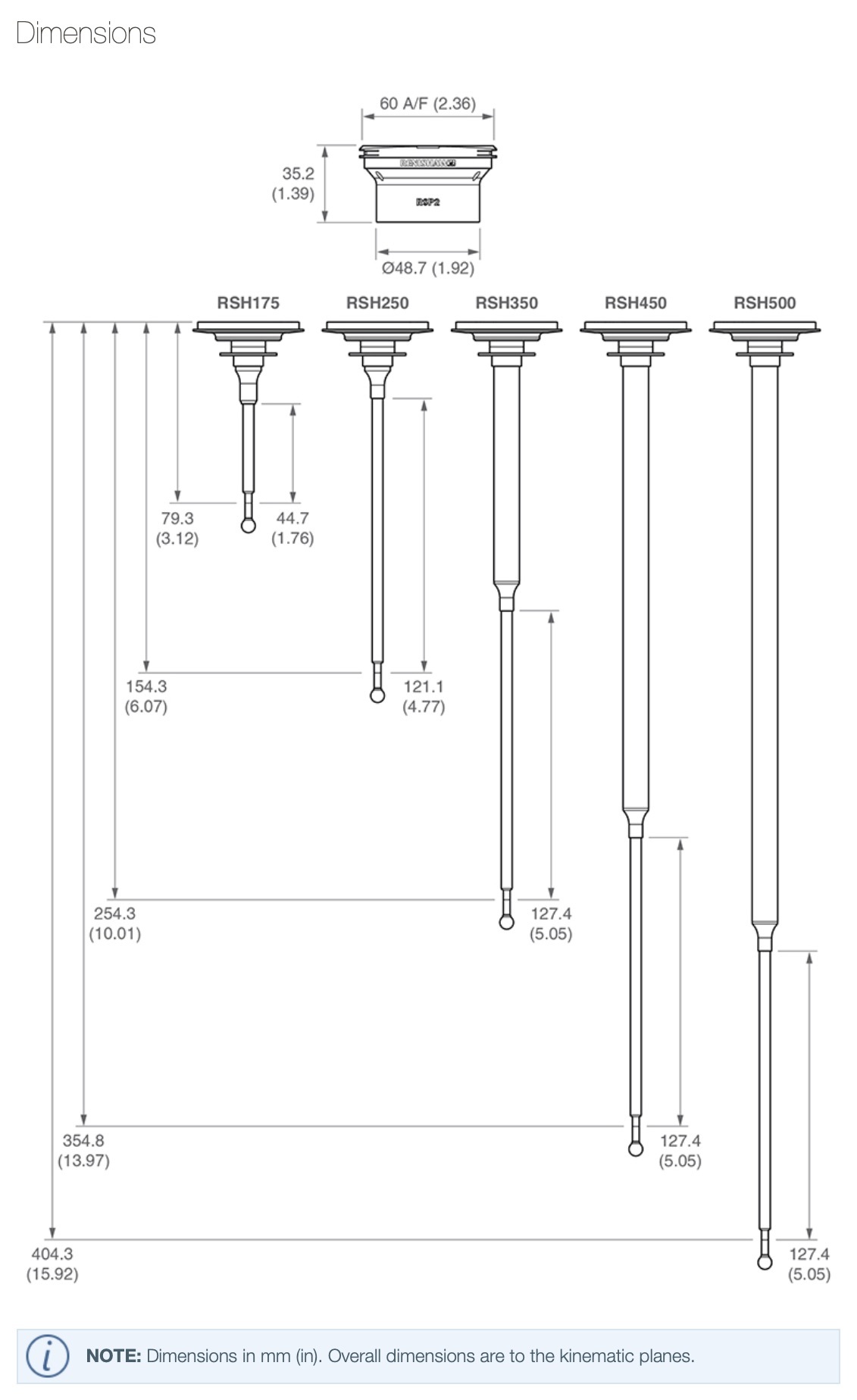

• The RSP2 has a universal body to which a number of different length stylus holders, with a maximum reach of 500 mm, can be fitted
• The type of styli that can be used with RSP2 are limited through UCCserver to ensure that acceptable metrology performance is achieve

How the RSP2 Tip Sensing Probe Works

Enclosed laser directed onto a reflector at the stylus tip * The stylus touches the part and bends, displacing the reflector * The altered return path of the laser is sensed by a PSD * The exact tip position is known because the reflector and stylus ball are close * Stylus wear is minimised by low scanning force

This is by the far the best price you will find on a Renishaw REVO RSP2 V2 Probe Display

Model with 6 Month Warranty. Why pay retail prices when you can purchase with warranty

from Metrology Parts. Purchase with confidence from a Paypal verified retailer. If what you

order is not what you receive you will be refunded the full purchase price for this sale.

Metrology Parts would like the opportunity to earn your business for this sale and all of your

future Renishaw needs. If you have any questions feel free to contact us. With 36 plus years of

experience with Renishaw products we can help with all of your application needs as well as

your after sales support.
