We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended.
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: SH25-1
MPN: A-2237-1301
Item Description

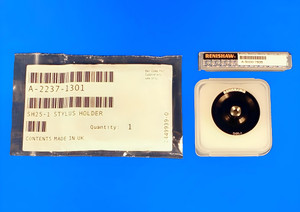

Renishaw SH25-1 Scanning Probe Module Stylus Holder Fully Tested with 90 Day Warranty.
About SH25
The SH25 range of stylus holders enable accurate scanning measurements with effective stylus lengths ranging from 20 mm - 400 mm. They have a kinematic coupling that connects to their respective SM25 scanning modules to provide a repeatable connection that eliminates the need for probe requalification after a change. The stylus holders are designed to only fit with their respective scanning module. They should be used with Renishaws M3 range of styli.
The SH25-3A stylus holder has an effective stylus reach of 120 mm - 200 mm.
Please note: The SH25-1/2/3/4 holders are recommended for use with linear stylus arrangements, while the SH25-5 and SH25-2A/3A/4A holders are recommended for use with cranked and star stylus arrangements.
SP25M Minimum & Maximum Stylus Carry Capability Diagram
World's smallest scanning probe at only 25 mm in diameter
Excellent metrology - isolated optical sensing and 3rd order polynomial compensation
Four modules provide optimal performance across a range of stylus lengths (up to 400 mm)
Two sensors in one - scanning and touch-trigger
Crash protection and simple stylus changing
Fast and simple probe calibration cycle
Ideal for profile and form measurement
Suitable for use on motorised indexing heads for greater flexibility and shorter scanning cycle times
Simple and robust design for greater reliability - no motors or locking mechanisms
SP25M Modules and Stylus Holders
A range of module kits allows SP25M users to build up their probing capability over time. Each SM25-# scanning module is optimised in terms of gain and spring rate to suit the range of stylus lengths specified. For every module, there is a matching SH25-# stylus holder. The SH25-3 and SH25-4 stylus holders are constructed with a fixed carbon fibre stem to which an M3 stylus is mounted, selected to provide the correct working length. Whilst the SP25M can carry cranked (non straight) styli configurations when using SM25-1/2/3/4 scanning modules and the original standard stylus holders (SH25-1/2/3/4) but for optimum metrology where larger offsets are required Renishaw recommends the new SH25-2A/3A/4A range of stylus holder, specifically designed to meet the challenges posed by such stylus arrangements.
| SM25-1 scanning module | SM25-2 | SM25-3 | SM25-4 | TM25-20 TTP adaptor module |
|---|---|---|---|---|
 |
 |
 |
 |
 |
|
Use with SH25-1 Stylus length: 20 - 50 mm |
Use with SH25-2 Stylus length: 50 - 105 mm |
Use with SH25-3 Stylus length: 120 - 200 mm |
Use with SH25-4 Stylus length: 220 - 400 mm |
Use with TP20 touch-trigger modules and extensions. |
This is by the far the best price you will find on a Renishaw SH25-1 Stylus Holder Fully Tested with
90 Day Warranty. If you would like to add other SP25M components to your order please do not
hesitate to contact us. Why pay retail prices when you can purchase with warranty from Metrology
Parts. Purchase with confidence from a Paypal verified retailer. If what you order is not what you
receive you will be refunded the full purchase price for this sale. Metrology Parts would like the
opportunity to earn your business for this sale and all of your future Renishaw needs. If you have any
questions feel free to contact us. With 36 plus years of experience with Renishaw products we can help
with all of your application needs as well as your after sales support.
