We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
Condition:
Display Model/New: An item in excellent, new condition with no functional defects. The item is missing the original packaging and was used for demo purposes. Comes with a 6 Month Warranty.
Country Of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: C8 CAPTO SHANK
MPN: M-2045-0311

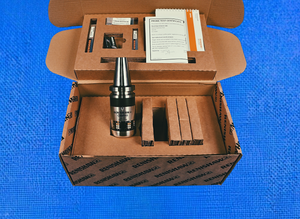

Renishaw CPT-C8-REN-OMP60 CAPTO Shank / ALPS Tool AC8-SHMP10-65 with 6 Month Warranty.
(M-2045-0311) CAPTO C8 Shank for OMP60, MP11, MP700, RMP60 and RMP600
Category:
Inspection Probes for Machining Centers

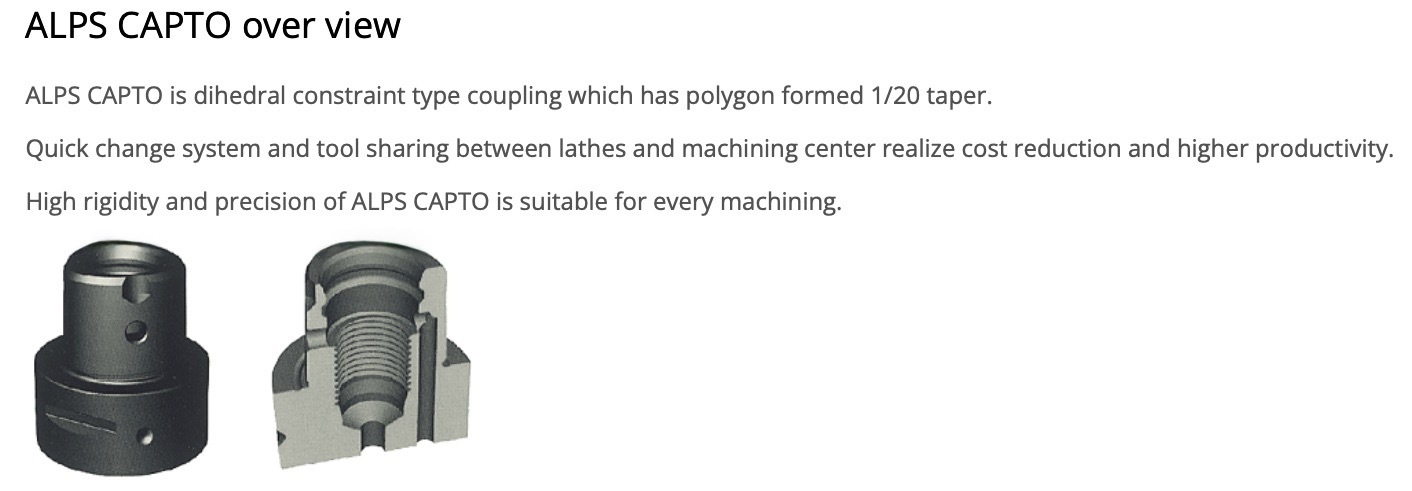

ALPS CAPTO
ALPS CAPTO Tooling
ALPS CAPTO tooling is the most suitable coupling for multi task machine (MTM), CNC lathes, and machining center.
Our various catching systems help realizing high precision and high efficiency.

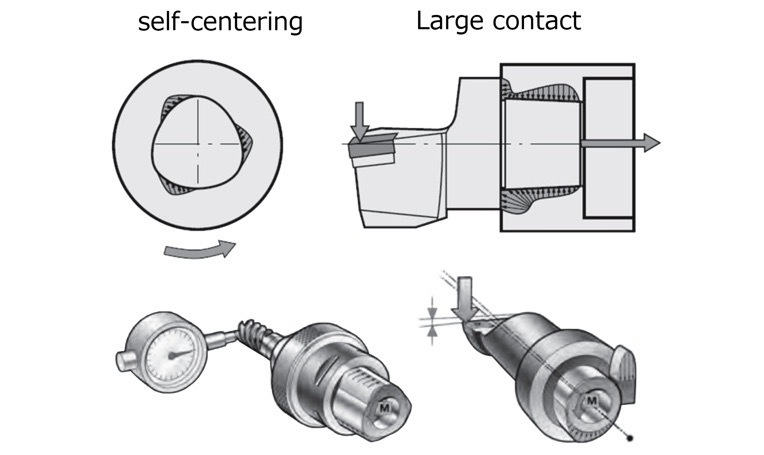

・Dihedral constraint coupling
Enhance rigidity
・Keyless coupling
Enhance rigidity and durability by receiving torque on each faces equally.
・High quality coupling
±2㎛, the smallest runout
|
Size |
Dimensions |
Equivalent Shank |
|
|
C3 |
D=32mm |
□20 Shank |
– |
|
C4 |
D=40mm |
□25 Shank |
– |
|
C5 |
D=50mm |
□32 Shank |
BT40 |
|
C6 |
D=63mm |
□40 Shank |
BT45 |
|
C8 |
D=80mm |
□50 Shank |
BT50 |
Clamp unit clamps polygon formed tapered shank with several tons of pressure. ALPS CAPTO demonstrates its maximum rigidity against bending and twisting. Gapless polygon form realizes the smallest runout. Error in height of the blade edge is eliminated owing to coupling without drive key.
Finishing Process
Stable machining dimension of work piece.
Rough machining
Prevent position shift and fracture of blade which is caused by pressure comes from deep cutting.
Clamp Mechanism
Capto clamp system clamps/ unclamps tooling with the movement of the draw bar and the segment.
This is a great price for a Renishaw CPT-C8-REN-OMP60 CAPTO Shank / ALPS Tool AC8-SHMP10-
65 Display Model with 6 Month Warranty. Purchase with Paypal from Metrology Parts a Paypal
verified retailer. If what you order is not what you receive you will be refunded the full purchase price
for this sale. Metrology Parts would like the opportunity to earn your business for this sale and all of
your future Renishaw product needs. If you have any questions feel free to contact us. With 36 plus
years of experience with Renishaw products we can help with all of your application needs as well as
your after sale support.
