We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
Condition:
Display/New – No Box: An item in excellent, new condition with no functional defects. The item is missing the original packaging and was used for demo purposes. Includes all accessories found with the original product and a 6 Month Warranty.
Country of Manufacture: RENISHAW
Brand: RENISHAW
Model: OMP40-2 PROBE & BT 30 TAPER SHANK
MPN: A-4071-2001 B30H-M11PH1 A-5000-3709

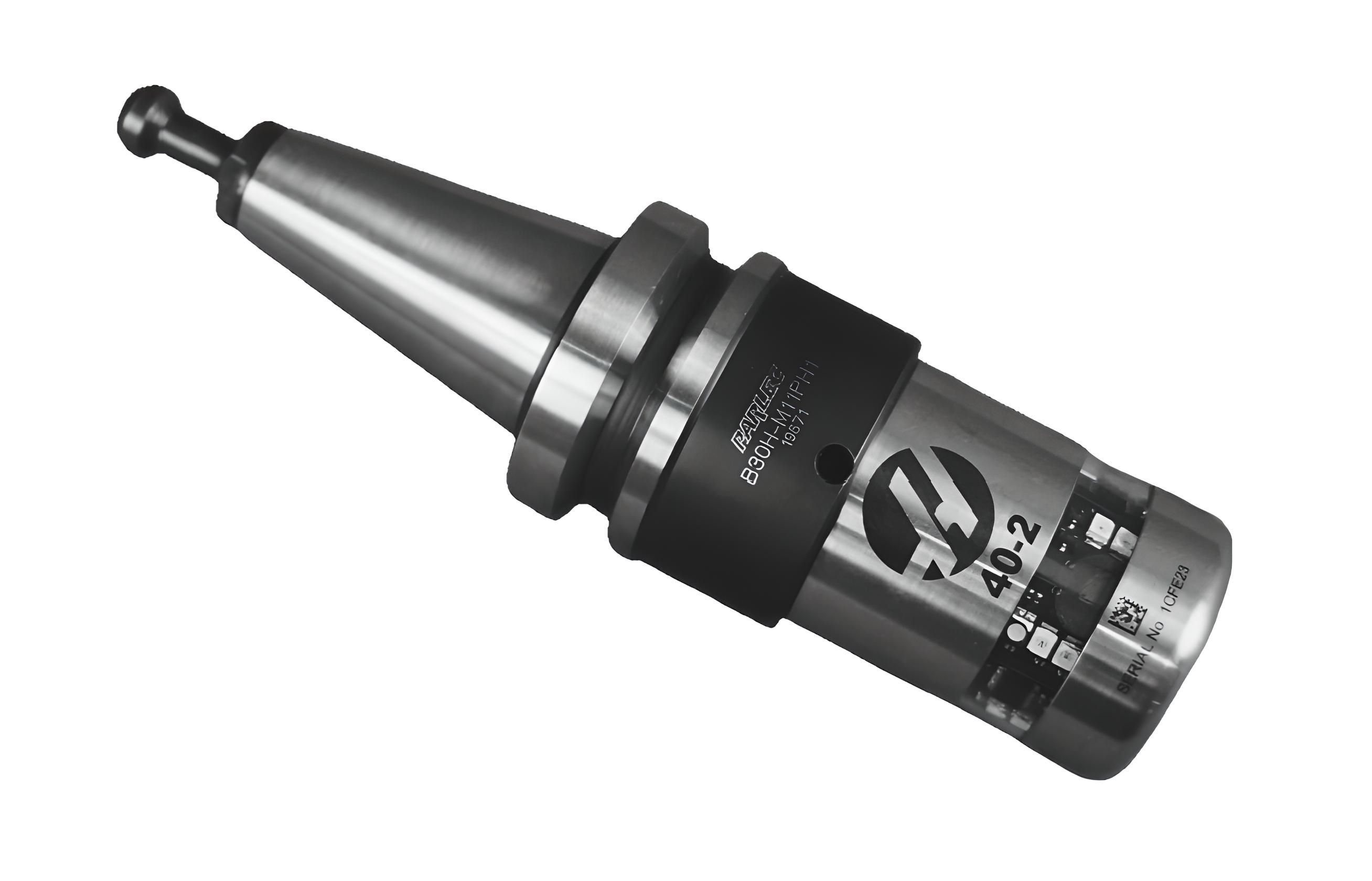

Renishaw HAAS Logo OMP40-2 Tool Probe, B30H-M11PH1 (BT 30 Taper) Shank & A-5000-3712 M4 Styli Display Model - 6 Month Warranty
This machine tool probe communicates in modulated mode. If you need legacy mode, please specify it in a message when checking out.
|
OMP40 with OMI-2T |
OMP40 with OMI-2 |
OMP40 with OMI |
OMP40 with OSI / OMM-2 |
|---|---|---|---|
| Offers a state-of-the-art modulated optical transmission method and the twin probe option. | Offers a state-of-the-art modulated optical transmission method. | Ideal for factory fitment by machine tool builders. |
Offers a state-of-the-art modulated optical transmission method, enabling up to three probes to be used. |

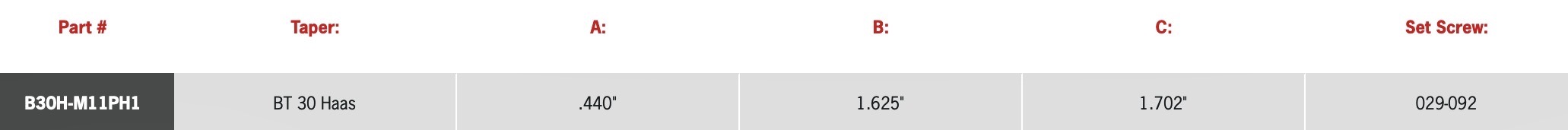

Parlec B30H-M11PH1 | 0.44" Diameter BT 30 Taper Collet Chuck
Suitable for OMP40 and OMP400 Probes
Features:
Constructed of alloy steel for long, durable service life
All critical surfaces are precision ground
Industry-standard 0.44" bore fits most popular probes
|
Shank Type |
Taper |
|---|---|
|
Taper |
30 |

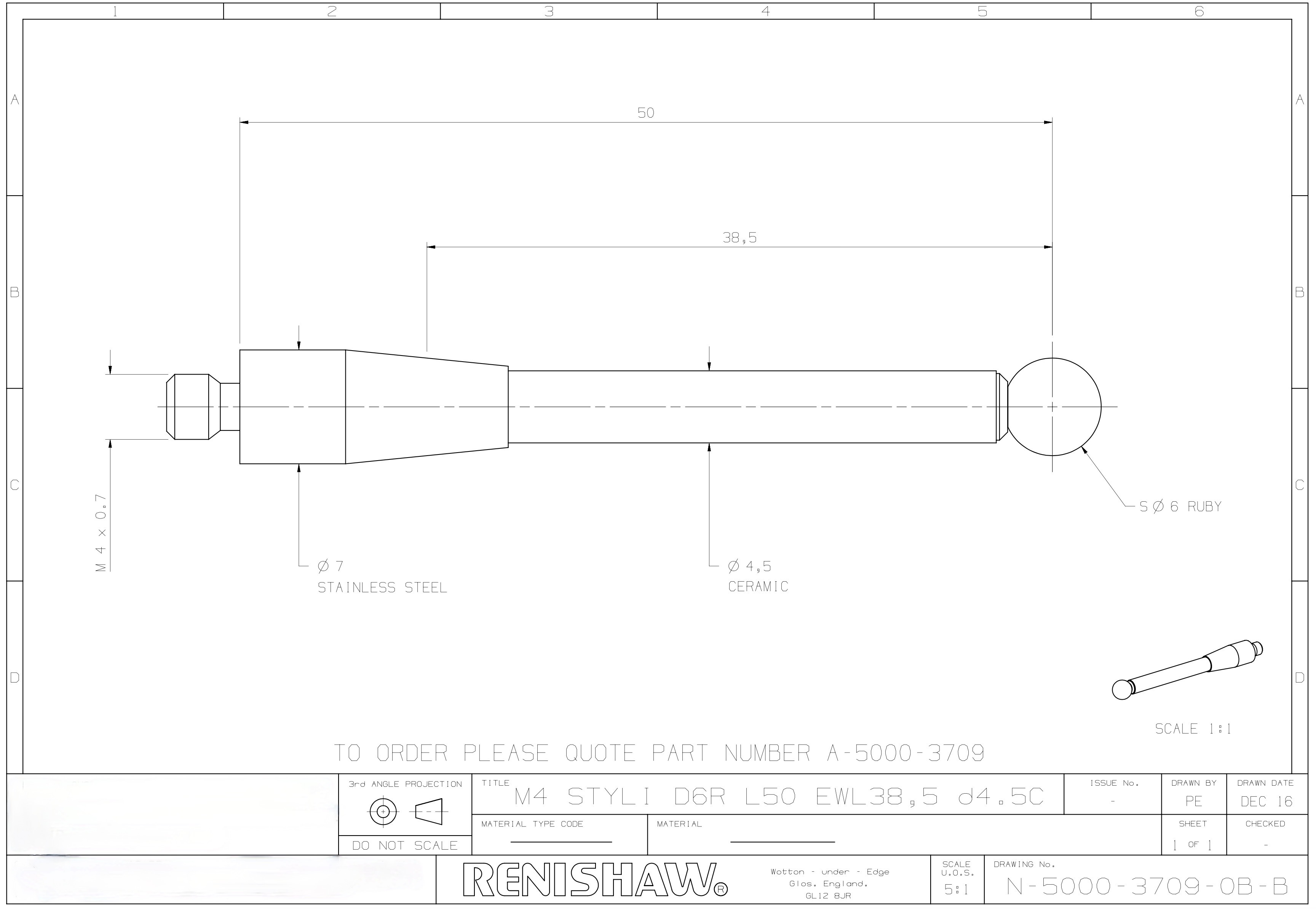

M4 Ø6 mm Ruby Ball, Ceramic Stem, L 50 mm, EWL 38.5 mm
Straight styli are designed to inspect simple features where direct, unobstructed contact with a measured surface is possible. A ceramic stem is lightweight yet very stiff and offers built-in crash protection. Ruby is regarded as the industry standard for stylus tips. It is one of the hardest materials available and suitable for most applications. Due to adhesive pickup, ruby tips are not recommended for scanning aluminium parts. Equivalent to Q-Mark part number: TM4-6053-C.
| Ball diameter (mm) | 6 |
|---|---|
| Centre styli | N |
| EWL (mm) | 38.5 |
| Holder material | Stainless steel |
| Overall length (mm) | 50 |
| Stem diameter (mm) | 4.5 |
| Stem material | Ceramic |
| Thread | M4 |
| Tip material | Ruby |
The OMP40 probe has been designed specifically to meet the demands of small machining
centres and the growing family of high-speed machines fitted with small HSK and small taper spindles.
OMP40-2 is available with modulated transmission for use with OMI-2, OMI-2T and
OMM-2 receivers, offering increased resistance to light interference.
The following software packages can be used to program probing routines for work piece set-up and
inspection on CNC machining centres
EasyProbe - entry-level package for simple work piece set-up
Inspection - basic set-up and work piece inspection cycles, with automatic update of offsets
Inspection plus - an integrated suite of inspection cycles including vector measurement
Productivity + Active Editor Pro - a PC-based software package with GUI, allowing the user to select
features directly from an imported CAD model, making the generation of probing cycles even easier.
This is a great price for a Renishaw HAAS Logo OMP40-2 Tool Probe, B30H-M11PH1 (BT 30 Taper)
Shank & A-5000-3709 Styli Display Model with 6 Month Warranty. Purchase with confidence from a
Paypal verified retailer. If what you order is not what you receive you will be refunded the full purchase
price for this sale. Metrology Parts would like the opportunity to earn your business for this sale and all
of your future Renishaw product needs. If you have any questions feel free to contact us. With 36 plus
years of experience with Renishaw products we can help with all of your application needs as well as
your after sales support.
