Brand: RENISHAW
Model: KM80 STANDARD MOUNT
MPN: A-2238-0703
Item Description
Renishaw KM80 Standard Kinematic Mount for SP80/SP80H New with 1 Year Warranty.

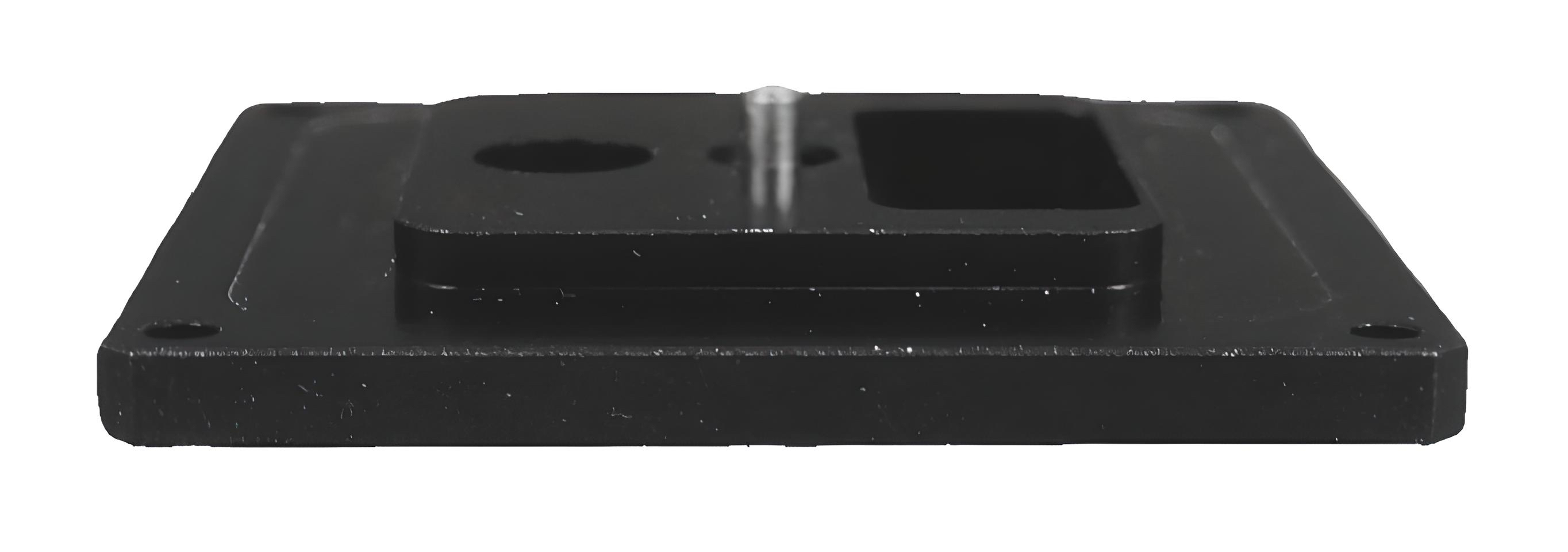

KM80 Quill Mount Plate
The standard mounting plate between the CMM quill (80 mm square) and the SP80 probe body. Provides easy & repeatable removal/replacement of the probe. Alternative CMM quill mountings are available.
SP80 Components & How to:

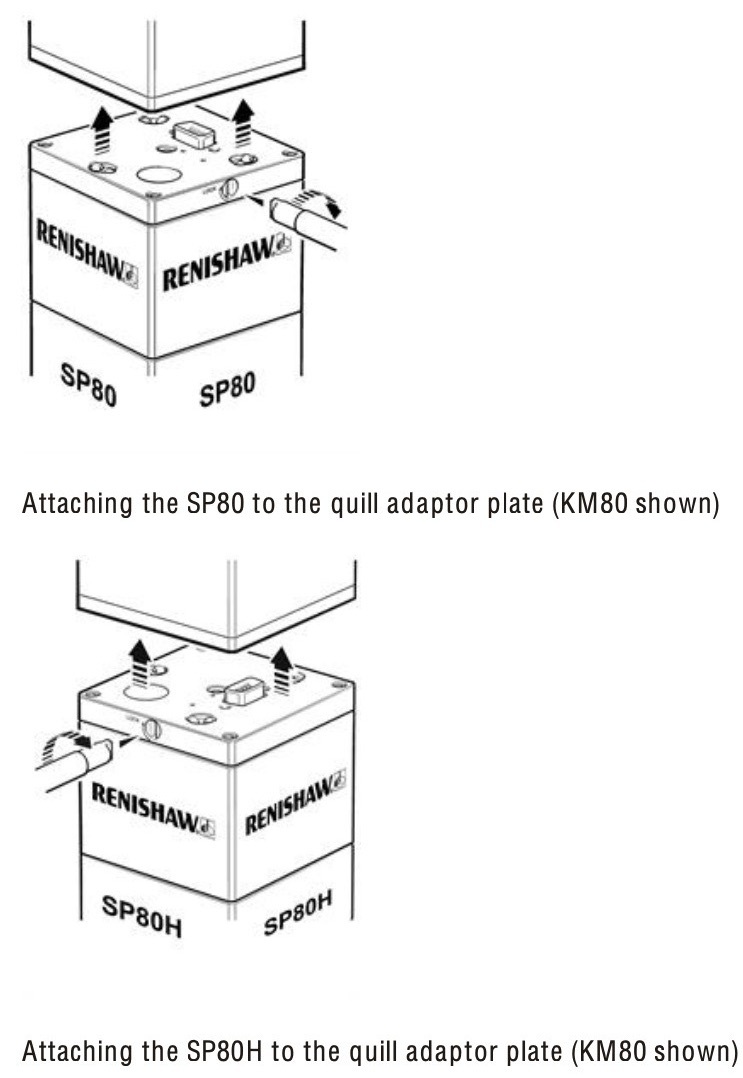

Mounting the SP80 / SP80H Body to the Quill Adaptor Plate
The SP80 and SP80H probe bodies have the female half of the kinematic joint incorporated in its top plate. The male half of the kinematic joint is incorporated in the KM80, the KM6080 and the SM80. To attach the probe to the quill adaptor plate proceed as follows:
Align the probe such that the 15-way connector on the top face is aligned with either the KM80 / KM6080 aperture or the mating connector in SM80, whichever is applicable.
If using the KM80 / KM6080, make the necessary connection with the probe cable within the quill. If using the SM80, ensure that the connector halves mate correctly during the next step.
Carefully locate the two halves of the kinematic joint together. Insert the S10 key into the autojoint key slot (at rear of probe) and turn the key clockwise until it locks tight.
Reverse the above procedure to remove the probe from the CMM taking care to prevent the probe from falling.
