Renishaw M2 4 Ball Star , Ø4 mm Ruby Balls, 10 mm Span Styli New A-5003-4788

MSRP: $221.00
$189.00
(You save $32.00)
(No reviews yet) Write a Review
Condition:
New
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

Product Description

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging



Country of Manufacture:   UNITED KINGDOM

Brand:    RENISHAW

Model:    M2 4 BALL STAR

MPN:   A-5003-4788



Item Description

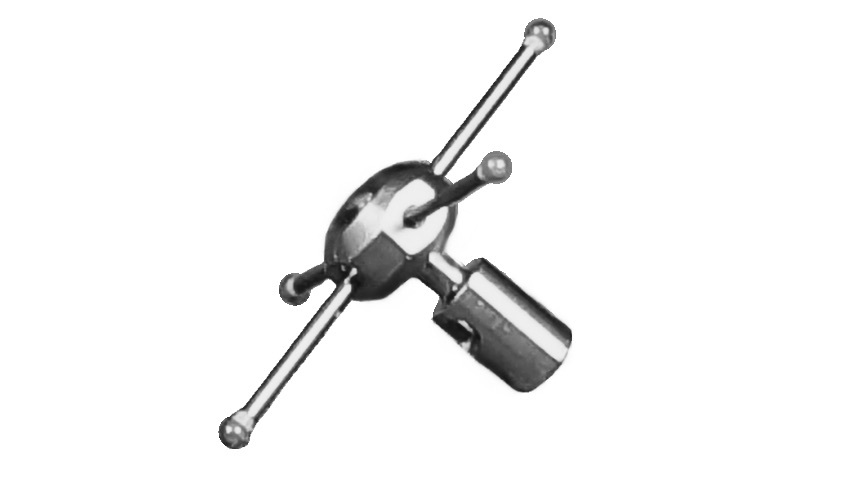

Renishaw M2 4 Ball Star , Ø4 mm Ruby Balls, 10 mm Span New with 1 Year Warranty.

This multi-tip star stylus can be used where contact with different surfaces is needed without changing the stylus. Ruby is regarded as the industry standard for stylus tips. It is one of the hardest materials available and suitable for most applications. Due to adhesive pickup, ruby tips are not recommended for scanning aluminium parts.

Equivalent to Q-Mark part number: STR2-1020

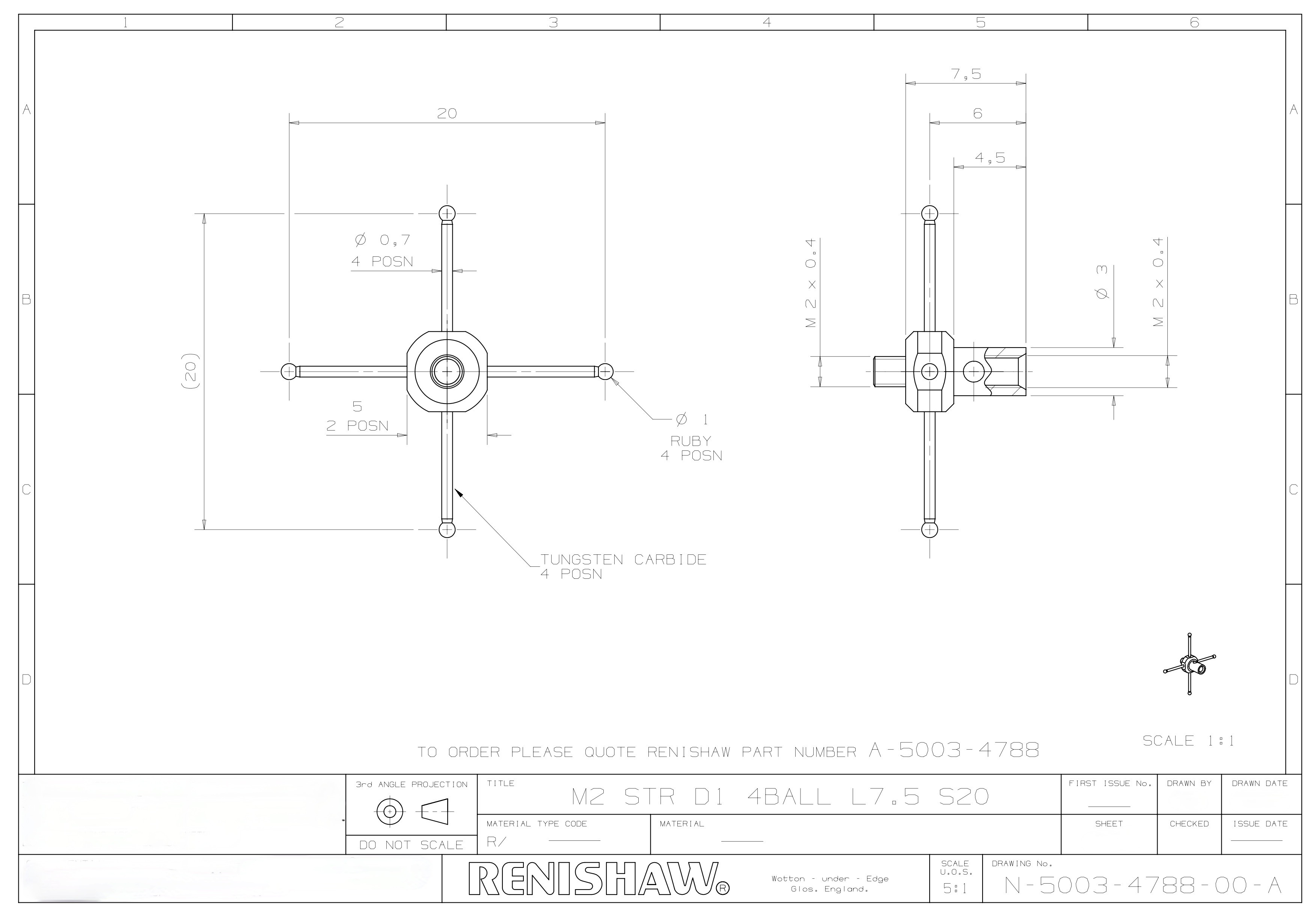

Technical Table

Ball diameter (mm) 1
EWD (mm) 21
EWL (mm) 7
Holder material Stainless steel
Overall length (mm) 7.5
Span (mm) 20
Stem diameter (mm) 0.7
Stem material Tungsten carbide
Thread M2
Tip material Ruby

Overall Length

Renishaw uses a standard description of overall length, measured from the rear mounting face of the stylus to the centre of the ball.

Effective Working Length (EWL)

This is measured from the centre of the ball to the point at which the stem will foul against the feature when measuring 'normal' to the part.

Rules for Choosing a Stylus

A few simple rules for stylus selection can be applied to maximize accuracy for most probing applications

Keep Styli Short

The more the stylus bends or deflects, the lower the accuracy. Probing with the minimum stylus length for your application is the best option.

Minimise Joints

Every time you join styli and extensions, you introduce potential bending and deflection points. Try, wherever possible, to keep to the minimum number of pieces possible for your application.

Keep the stylus ball as large as possible

There are several reasons for this:

* it maximises your ball/stem clearance, thereby reducing the chance of false triggers caused by 'shanking   * out' on the stylus stem, and increasing the EWL;

* a larger ball allows a larger stem diameter, increasing the stiffness of the stylus;

* the larger ruby ball reduces the effect of the surface finish of the component being inspected.

* EWL can also be affected by assembly tolerances. For this reason Renishaw styli are assembled to exacting standards in controlled conditions.

This is by far the best price you will find on a Renishaw M2 4 Ball Star, Ø4 mm Ruby Balls, 10 mm

Span New with 1 Year Warranty. Purchase with confidence from a Paypal verified retailer.

If what you order is not what you receive you will be refunded the full purchase price of this sale.

Metrology Parts would like the opportunity to earn your business for this sale and all of your future

Renishaw needs. If you have any questions feel free to contact us. With 36 plus years of experience

with Renishaw products we can help with all of your application needs as well as your after sales

support.
