We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging.
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: M2 0.5 MM TUNGSTEN SPHERICALLY ENDED CYLINDER STYLI
MPN: A-5003-1210
Item Description

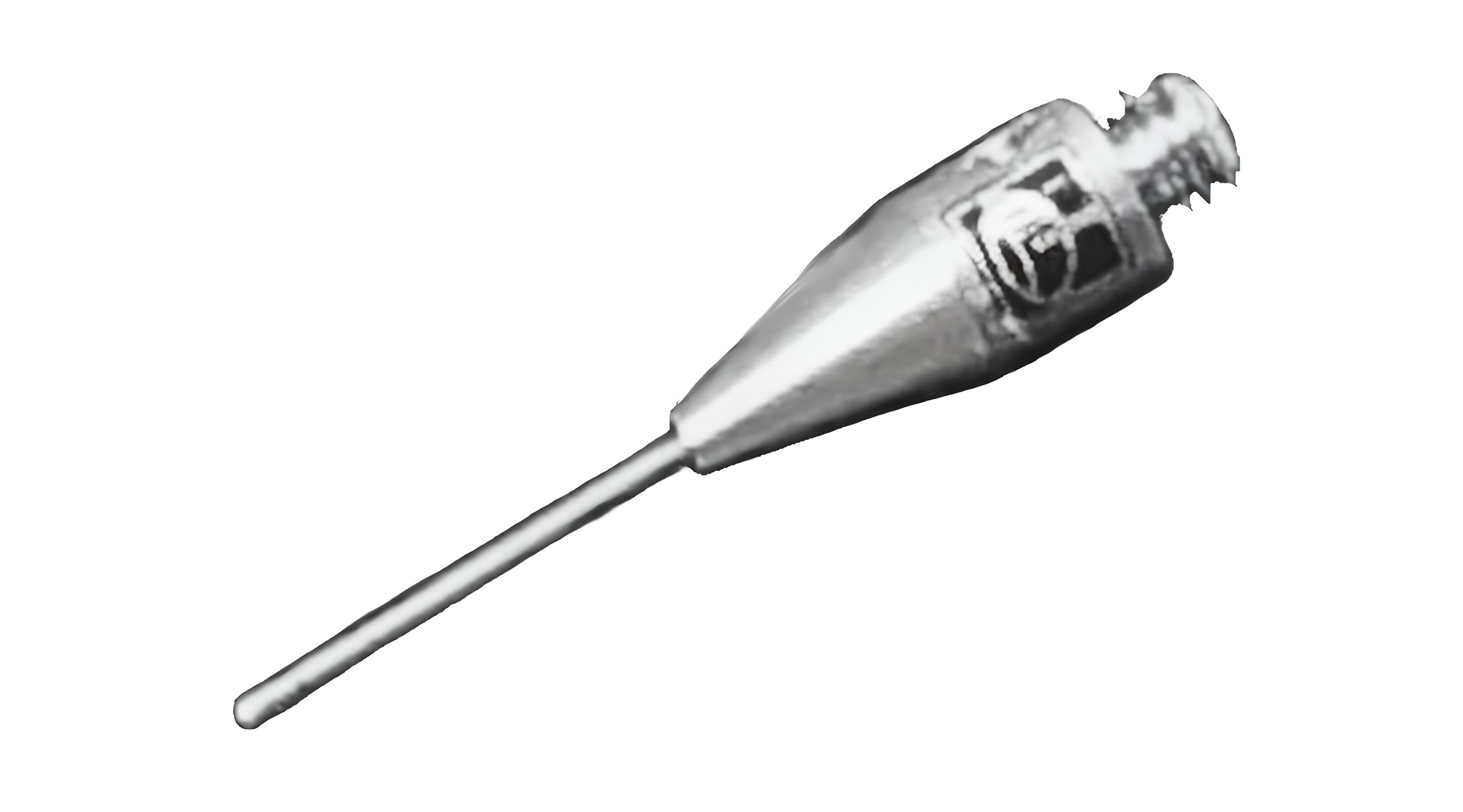

Renishaw M2 Ø0.5 mm Tungsten Carbide Spherically Ended Cylinder, L 15.3 mm New with 1 Year Warranty.
Cylinder styli can be used in situations where correct contact with a ball stylus cannot be guaranteed, such as applications with sheet metal, pressed components or thin work pieces. Tungsten carbide tips are ideal for applications demanding a hardwearing interface with an inspected item.
Equivalent to Q-Mark part number: TM2-0515-BC
| Ball Diameter (mm) | 0.5 |
|---|---|
| Cylinder Diameter (mm) | 0.5 |
| EWL (mm) | 7.75 |
| Overall Length (mm) | 15.25 |
| Stem Material | Stainless Steel |
| Thread | M2 |
| Tip material | Tungsten Carbide |
Renishaw uses a standard description of overall length, measured from the rear mounting face of the stylus to the centre of the ball.
This is measured from the centre of the ball to the point at which the stem will foul against the feature when measuring 'normal' to the part.
A few simple rules for stylus selection can be applied to maximize accuracy for most probing applications
The more the stylus bends or deflects, the lower the accuracy. Probing with the minimum stylus length for your application is the best option.
Every time you join styli and extensions, you introduce potential bending and deflection points. Try, wherever possible, to keep to the minimum number of pieces possible for your application.
EWL can also be affected by assembly tolerances. For this reason Renishaw styli are assembled to exacting standards in controlled conditions.
This is by far the best price you will find on a Renishaw M2 Ø0.5 mm Tungsten Spherically Ended
Cylinder, L 15.3 mm Styli New with 1 Year Warranty. Purchase with confidence from a Paypal verified
retailer. If what you order is not what you receive you will be refunded the full purchase price of this
sale. Metrology Parts would like the opportunity to earn your business for this sale and all of your
future Renishaw needs. If you have any questions feel free to contact us. With 36 plus years of
experience with Renishaw products we can help with all of your application needs as well as your
after sales support.
