We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging.
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: M2 Ø5 MM RUBY BALL CARBON L50 MM STEM
MPN: A-5003-2286

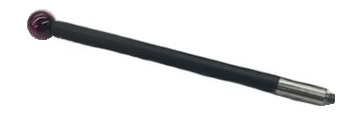

Renishaw M2 Ø5 mm Ruby Ball, Carbon Fibre Stem, L 50 mm, EWL 50 mm CMM Styli New 1 Year Warranty.
Designed to inspect simple features where direct, unobstructed contact with a measured surface is possible. A carbon fibre stem is very lightweight and ideal for applications where weight is critical. Ruby is regarded as the industry standard for stylus tips. It is one of the hardest materials available and suitable for most applications. Due to adhesive pickup, ruby tips are not recommended for scanning aluminium parts.
Equivalent to Q-Mark part number: TM2-5052.5-G.
Tightening tool recommended: A-5003-2300
A few simple rules can be applied to maximize accuracy for most probing applications.

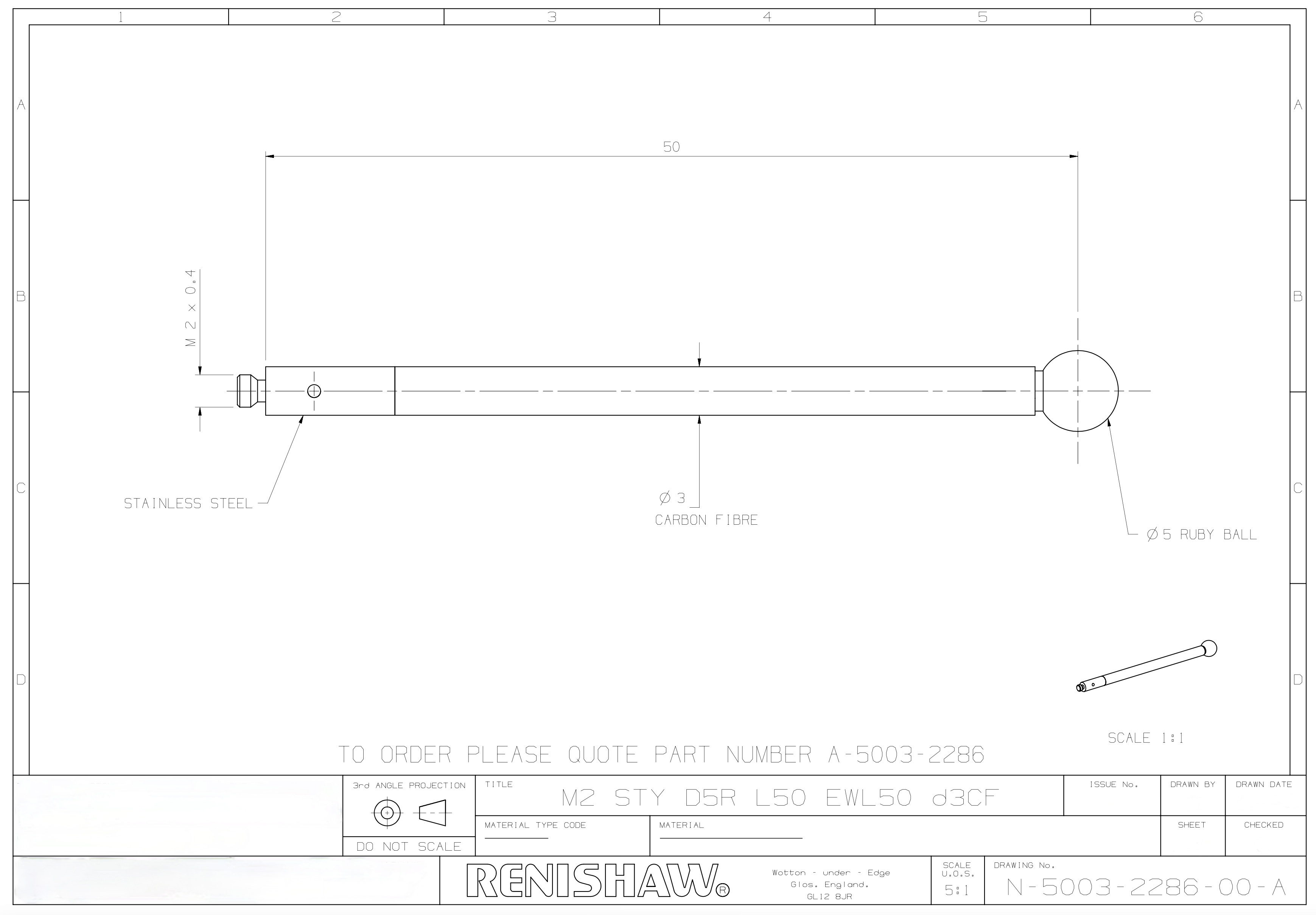

Technical Table
| Ball diameter (mm) | 5 |
|---|---|
| Centre styli | N |
| EWL (mm) | 50 |
| Holder material | Stainless steel |
| Overall length (mm) | 50 |
| Stem diameter (mm) | 3 |
| Stem material | Carbon fibre |
| Thread | M2 |
| Tip material | Ruby |
Overall Length
Renishaw uses a standard description of overall length, measured from the rear mounting face of the stylus to the centre of the ball.
Effective Working Length (EWL)
This is measured from the centre of the ball to the point at which the stem will foul against the feature when measuring 'normal' to the part.
Rules for Choosing a Stylus
A few simple rules for stylus selection can be applied to maximize accuracy for most probing applications
Keep Styli Short
The more the stylus bends or deflects, the lower the accuracy. Probing with the minimum stylus length for your application is the best option.
Minimise Joints
Every time you join styli and extensions, you introduce potential bending and deflection points. Try, wherever possible, to keep to the minimum number of pieces possible for your application.
There are several reasons for this:
it maximises your ball/stem clearance, thereby reducing the chance of false triggers caused by 'shanking out' on the stylus stem, and increasing the EWL;
a larger ball allows a larger stem diameter, increasing the stiffness of the stylus;
the larger ruby ball reduces the effect of the surface finish of the component being inspected.
EWL can also be affected by assembly tolerances. For this reason Renishaw styli are assembled to exacting standards in controlled conditions.
This is by far the best price you will find on this a Renishaw M2 Ø5 mm Ruby Ball, Carbon Fibre
Stem, L 50 mm, EWL 50 mm. Purchase with confidence from a Paypal verified retailer. If what you
order is not what you receive you will be refunded the full purchase price of this sale. Metrology Parts
would like the opportunity to earn your business for this sale and all of your future Renishaw needs.
If you have any questions feel free to contact us. With 36 plus years of experience with Renishaw
products we can help with all of your application needs as well as your after sales support.
