We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: MH8
MPN: A-1332-0002

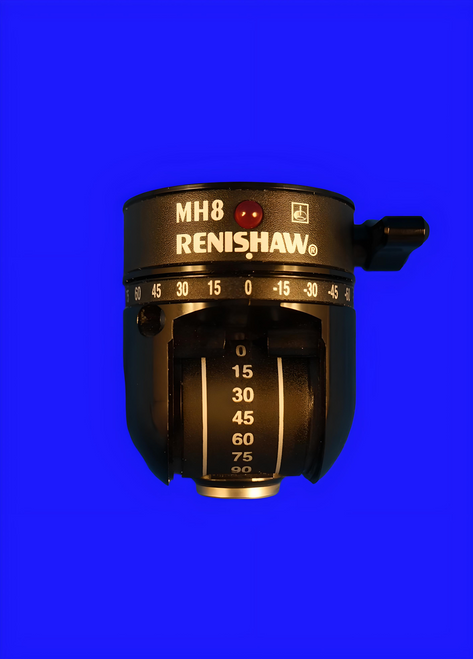

Preowned Renishaw MH8 Manually Indexible Probe Head Fully Tested with 90 Day Warranty.
This Renishaw MH8 has been fully tested and meets Renishaw's original specifications.
Renishaw's current retail price for this probe head is $3546.00

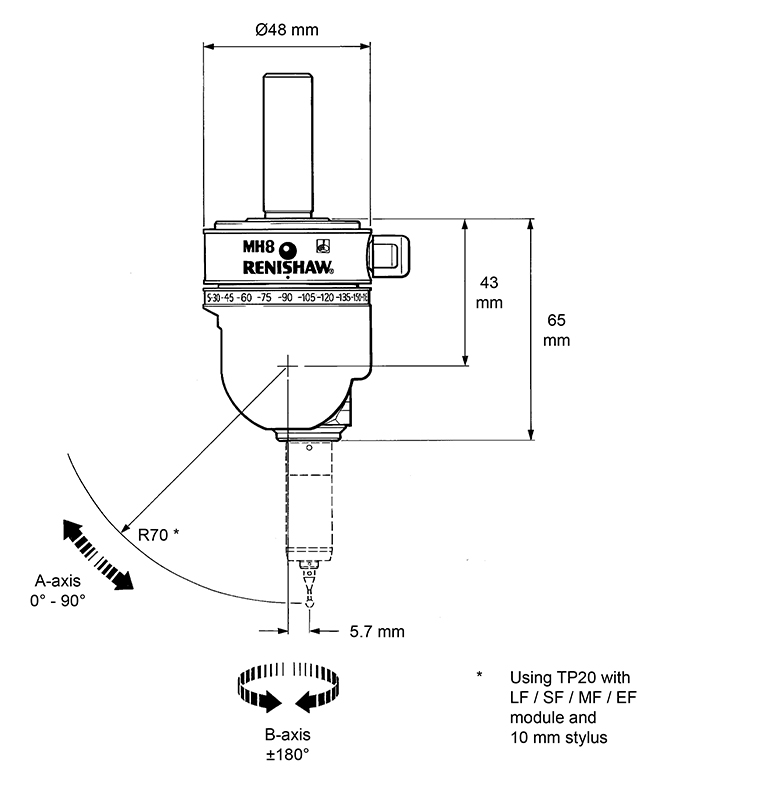

| Specification | |
|---|---|
| Weight | 205 g |
| Probe mounting | M8 thread |
| Head mounting | MS range of shanks |
| Suitable interface | PI 4-2, PI 200 |
| Probe status indication | 1 LED |
| Cable connection | 5 pin DIN 180º socket |
| A-axis indexing | 0° to 90° in 15° repeatable steps = 7 positions |
| B-axis indexing | ±180° in 15° repeatable steps = 24 positions |
| Repeatability of position (2s) | 1.5 µm (0.00006 in) TP2 and 10 mm (0.39 in) stylus fitted |
| Maximum extension bar | 50 mm (1.97 in) PEL1 only |
This is by far the best price you will find for a fully tested Renishaw MH8 Probe Head with Warranty.
If you would like to add a TP20 TP2 or TP6 probe to this in either new or used please do not hesitate to contact us.
Why pay retail prices when you can purchase with warranty from Metrology Parts.
Purchase with Paypal from Metrology Parts a Paypal verified retailer.
If what you order is not what you receive you will be refunded the full purchase price for this sale.
Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw product needs.
If you have any questions feel free to contact us. With 35 plus years of experience with Renishaw products we can help with all of your application needs as well as your after sales support.
Looks good and works better.
