We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
New Stock: An item in excellent, new condition with no functional defects. The item comes with original packaging, shank adaptor and 6 Month Warranty.
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: MP9 & SHANK ASSEMBLY ADAPTOR
MPN: A-2034-0038 A-4071-0031
Item Description:
Renishaw MP9 70 Degree Probe & Shank Assembly Adapter New Stock with 6 Month Warranty.

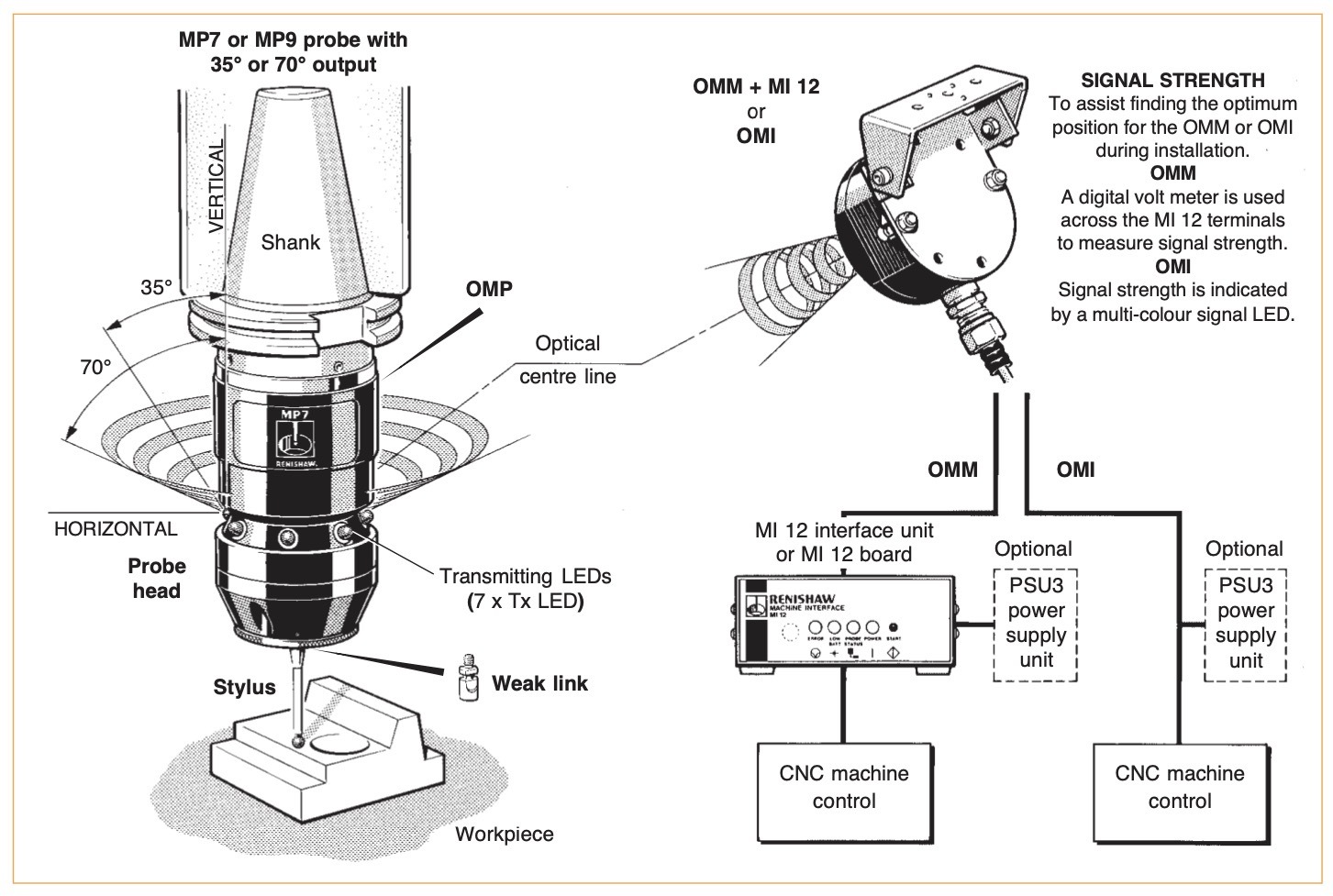

SYSTEM COMPONENTS
MP7 & MP9 Probes
MP7 and MP9 probes are used for workpiece set-up and inspection on CNC machining centres.
OMM + MI 12 Interface
Signals pass from the CNC control to the OMP via the MI 12 and OMM and return along the same route.
The MI 12 interface converts probe signals into the correct format for the CNC machine control input. OMM transmission and reception ranges are factory set to 100%. If OMM signals interfere with probes on other machines, then the optical range can be reduced.
OMI
An alternative to the OMM + MI 12 interface, combining the functions of both OMM and MI 12 in one unit.
PSU3 Power Supply Unit for MI 12 or OMI
Used when 24 V supply is not available from the machine.
Software for Probing Routines
Renishaw single and double touch probing cycles are availble for use with Renishaw probe systems.
SYSTEM FEATURES
Signal Transmission and Probe Power Supply
MP7 and MP9 probes are available with their optical axes at 35° or 70° to the machine spindle centre line. Power for the probe is supplied by a long life 9 V battery contained within the OMP (optical module probe).
Probe Switch-on/off
|
Probe |
Switch-on |
Switch-off |
|
MP7 |
Spin-on |
Spin-off |
|
MP9 |
Spin-on |
Timer-off |
To suit different operating requirements the MP7 and MP9 each have a unique switch-off procedure. The operating envelopes are identical for each type.
Probe, OMM and OMI Sealing
Sealed to IP68 and designed for the machine tool environment.
Break Protection
A stylus weak link is included in each kit, to protect the probe in the event of excessive stylus overtravel.
Renishaw MP9 Specification & Measurement Data

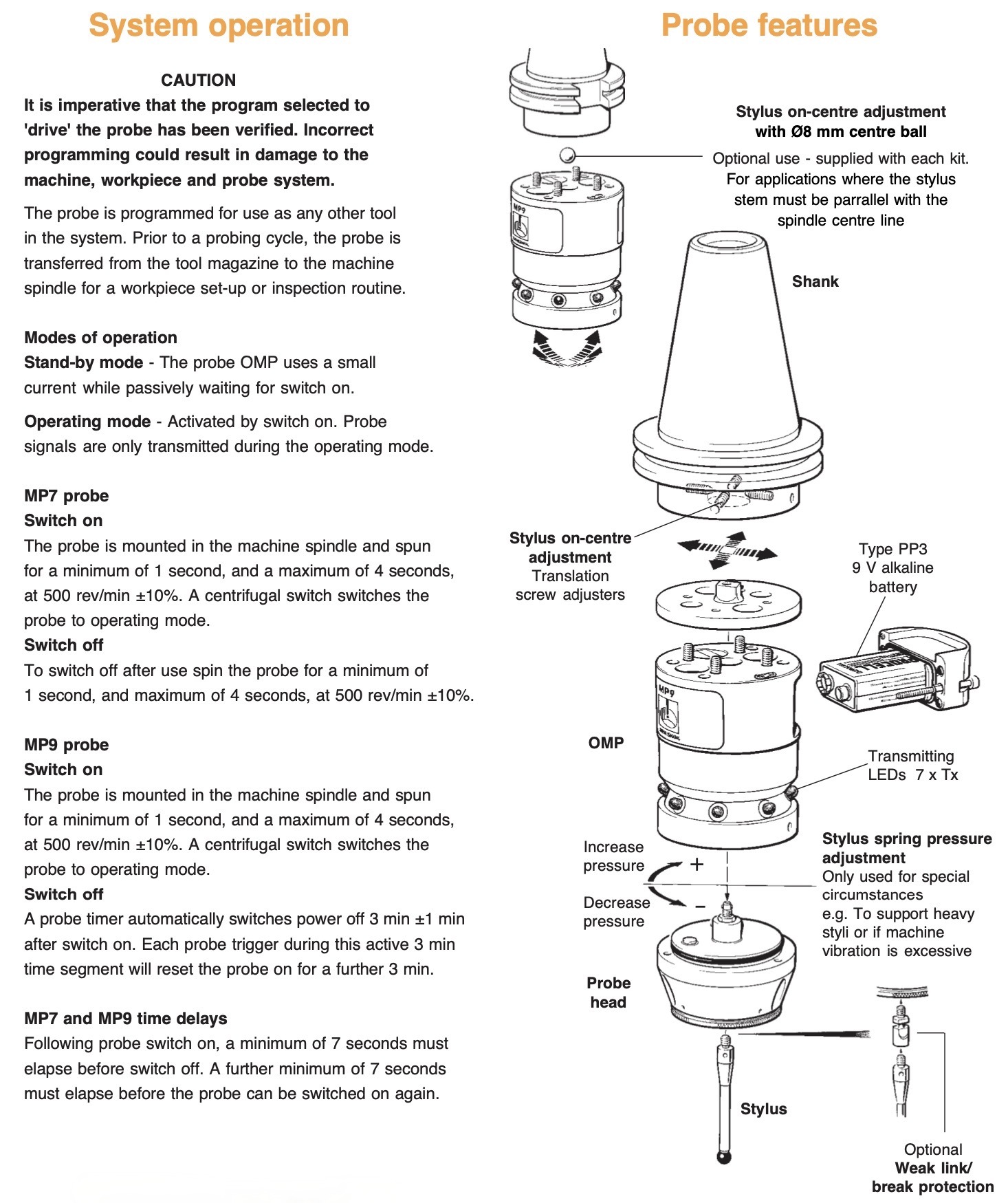

MP9 System Operation
Why pay retail prices when you can purchase Renishaw MP9 70 Degree Probe & Shank
Assembly Adapter with 6 Month Warranty. Purchase with Paypal from Metrology Parts a Paypal
verified retailer. If what you order is not what you receive you will be refunded the full
purchase price for this sale. Metrology Parts would like the opportunity to earn your business
for this sale and all of your future Renishaw product needs. If you have any questions feel free
to contact us. With 36 plus years of experience with Renishaw products we can help with all of
your application needs as well as your after sale support.
