We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
Condition:
New – Display Model: An item in excellent, new condition with no functional defects. This probe does not come with the original packaging and was used for demo purposes. Includes accessories found with the original product, M4 Ceramic Styli and a 6 Month Warranty.
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: OMP40-2 * HSK A40 SHANK * M4 STYLI
MPN: A-4071-2001 M-4071-0046 A-5000-3709
Item Description
Renishaw OMP40-2 Probe, HSK A40 Shank & M4 6MM Ruby Tip, 50MM Ceramic Stem Styli - Display Model with 6 Month Warranty.
* Performance specification is tested at a standard test velocity of 480 mm/min (18.9 in/min) with a 50 mm stylus. Significantly higher velocity ispossible depending on application requirements.
* Trigger force, which is critical in some applications, is the force exerted on the component by the stylus when the probe triggers. The maximum force applied will occur after the trigger point (overtravel). The force value depends on related variables, including measuring speed and machine deceleration.
* These are the factory settings; manual adjustment is not possible.
The following software packages can be used to program probing routines for work piece set-up and inspection on CNC machining centres
EasyProbe - entry-level package for simple work piece set-up
Inspection - basic set-up and work piece inspection cycles, with automatic update of offsets
Inspection plus - an integrated suite of inspection cycles including vector measurement
Productivity + Active Editor Pro - a PC-based software package with GUI, allowing the user to select
features directly from an imported CAD model, making the generation of probing cycles even easier.

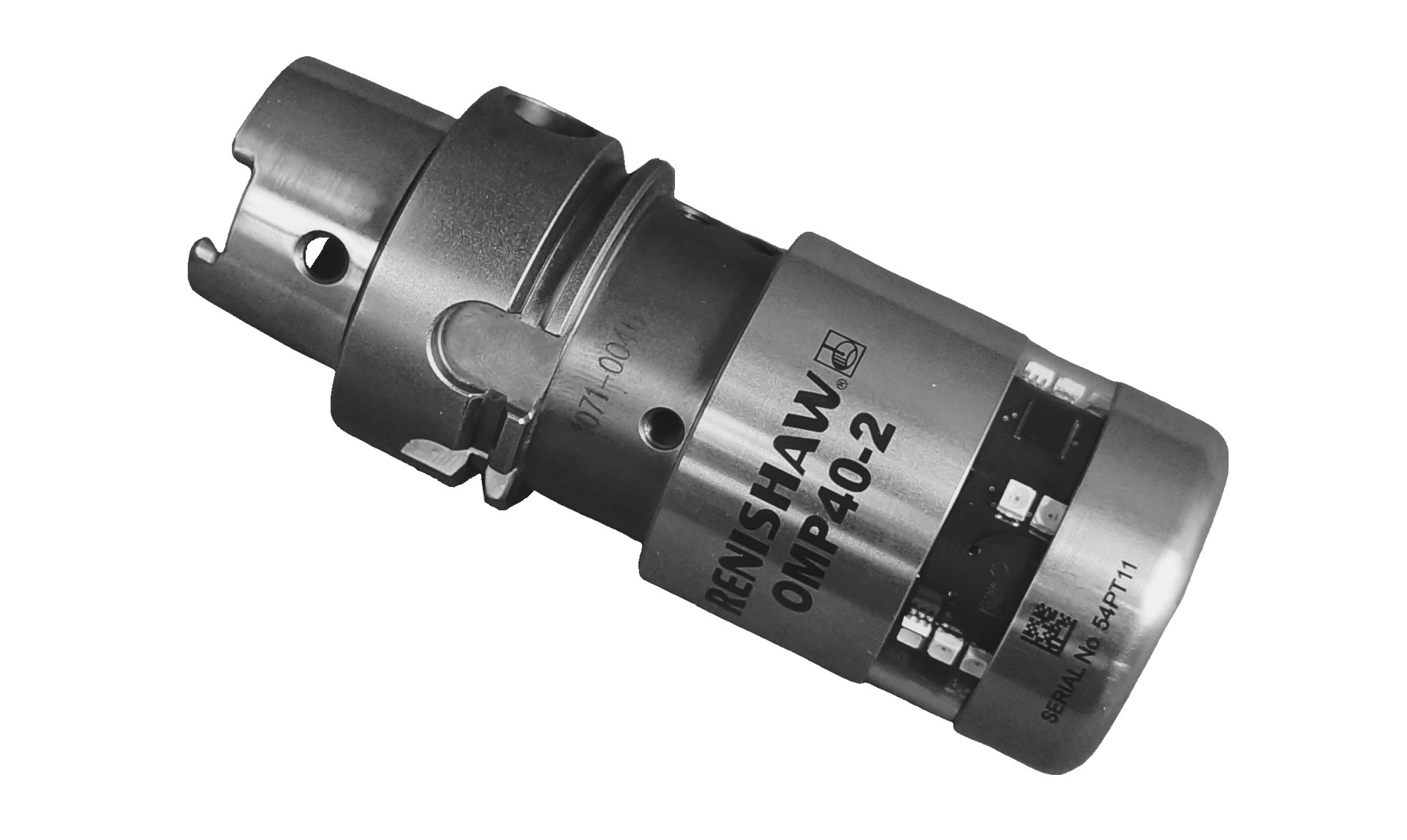

HSK A40 MACHINE TOOL SHANK
Shank Specification DIN 69893 HSK Form A+C 40
Technical Table
| Gauge length A (mm) | 35.25 |
|---|---|
| HSK | A+C 40 |
| Shank type | HSK |

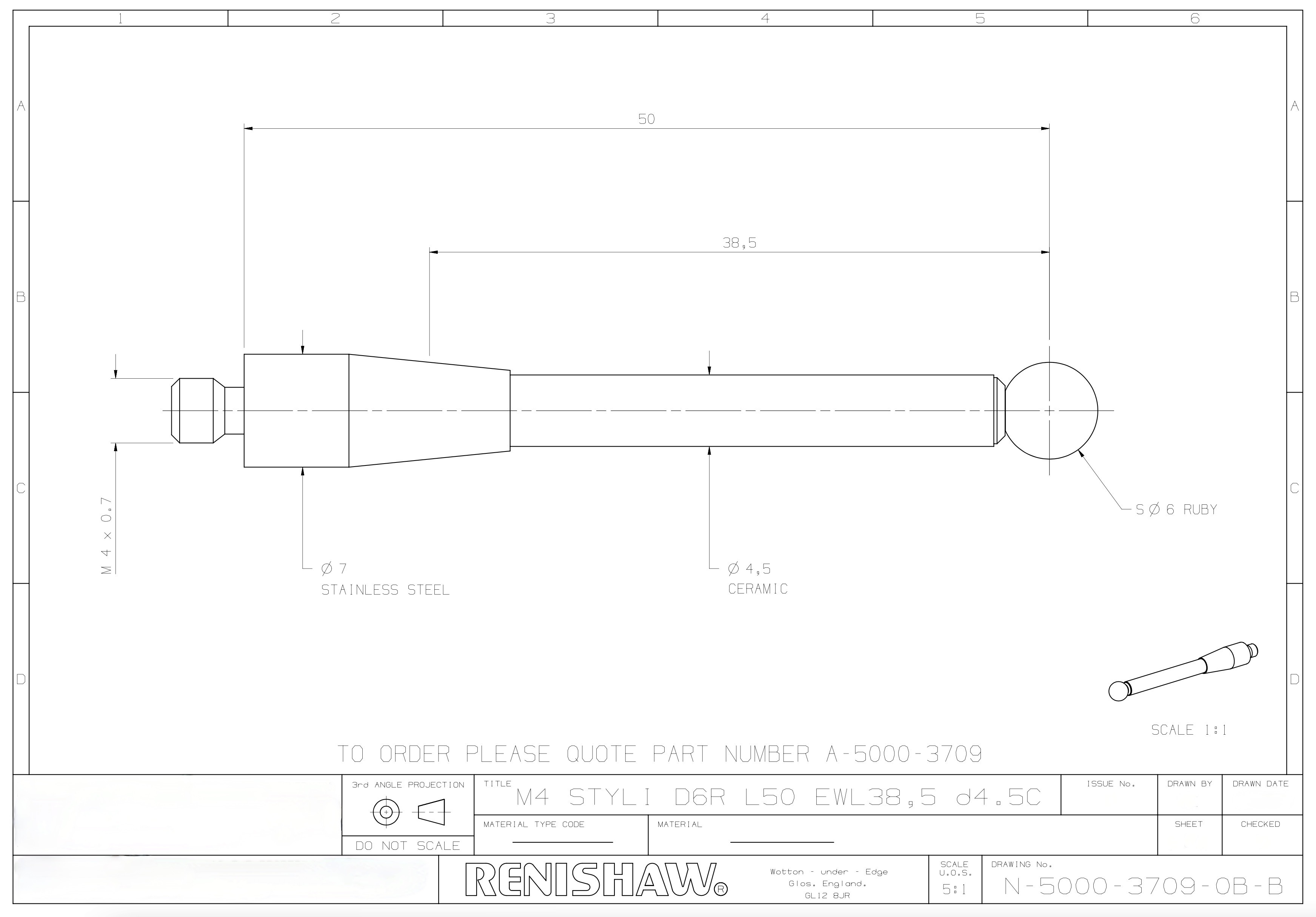

M4 Ø6 mm Ruby Ball, Ceramic Stem, L 50 mm, EWL 38.5 mm
Straight styli are designed to inspect simple features where direct, unobstructed contact with a measured surface is possible. A ceramic stem is lightweight yet very stiff and offers built-in crash protection. Ruby is regarded as the industry standard for stylus tips. It is one of the hardest materials available and suitable for most applications. Due to adhesive pickup, ruby tips are not recommended for scanning aluminium parts. Equivalent to Q-Mark part number: TM4-6053-C.
Technical Table
| Ball diameter (mm) | 6 |
|---|---|
| Centre styli | N |
| EWL (mm) | 38.5 |
| Holder material | Stainless steel |
| Overall length (mm) | 50 |
| Stem diameter (mm) | 4.5 |
| Stem material | Ceramic |
| Thread | M4 |
| Tip material | Ruby |
A-5000-3709 Specification
This is a great price for a Renishaw OMP40-2 Probe, HSK A40 (Form A+C 40) Shank & M4 Styli -
Display Model with a 6 Month Warranty. Purchase with confidence from a Paypal verified retailer.
If what you order is not what you receive you will be refunded the full purchase price for this sale.
Metrology Parts would like the opportunity to earn your business for this sale and all of your future
Renishaw product needs. If you have any questions feel free to contact us. With 36 plus years of
experience with Renishaw products we can help with all of your application needs as well as your after
sales support.
