Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: OMP60 HSK A63 SHANK
MPN: A-4038-4001 M-2045-0188
Item Description
Renishaw OMP60 & HSK A63 Shank Optical Transmission Probe Kit & Styli New 1 Year Warranty.
OMP60 Machine Tool Probe
HSK A63 Shank
A-5000-3709 Styli
A-5000-3712 Styli
A-5003-1075 Styli

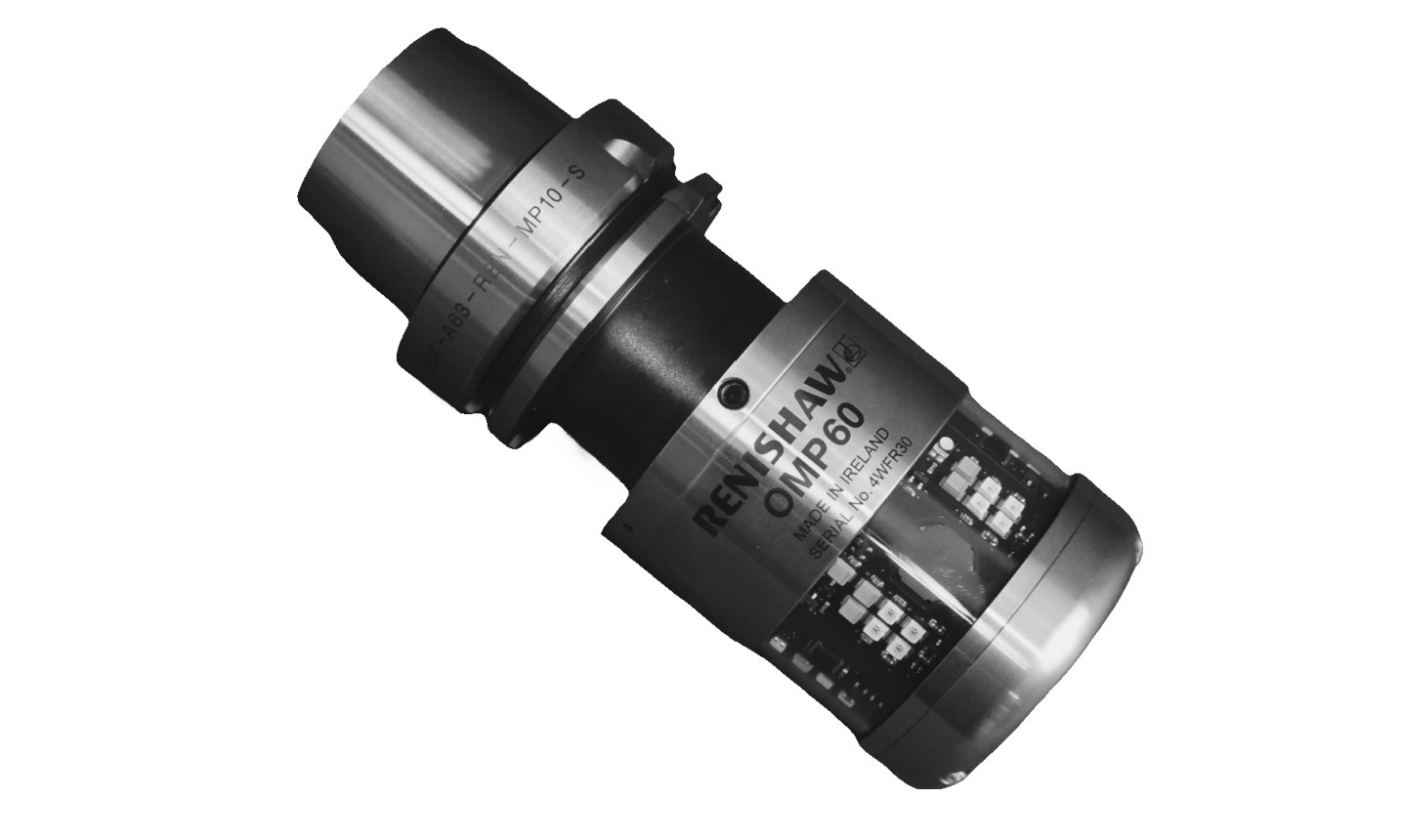

OMP60 optical transmission probe
For workpiece inspection and job set-up on all sizes of machining centres and small to medium multi-tasking
The following software packages can be used to program probing routines for workpiece set-up and inspection on CNC machining centres.
* GoProbe – entry-level package for simple workpiece set-up and tool setting routines.
* Inspection Plus – an integrated suite of inspection cycles including vector measurement.
* Productivity+™ Active Editor Pro – a PC-based software package with GUI, allowing users to select features directly from an imported CAD model.
This shank is designed to secure the probe into an HSK A+C 63 machine tool spindle. Shank gauge length 53.00 mm (2.087 inches), and it is suitable for OSP60, OMP60, RMP60 and RMP600 (when not used in shank switch configuration).
Technical Table
| Gauge length A (mm) | 53 |
|---|---|
| HSK | A+C 63 |
| Shank type | HSK |
Straight Styli
Straight styli are designed to inspect simple features where direct, unobstructed contact with a measured surface is possible. A ceramic stem is lightweight yet very stiff and offers built-in crash protection. Ruby is regarded as the industry standard for stylus tips. It is one of the hardest materials available and suitable for most applications. Due to adhesive pickup, ruby tips are not recommended for scanning aluminium parts.

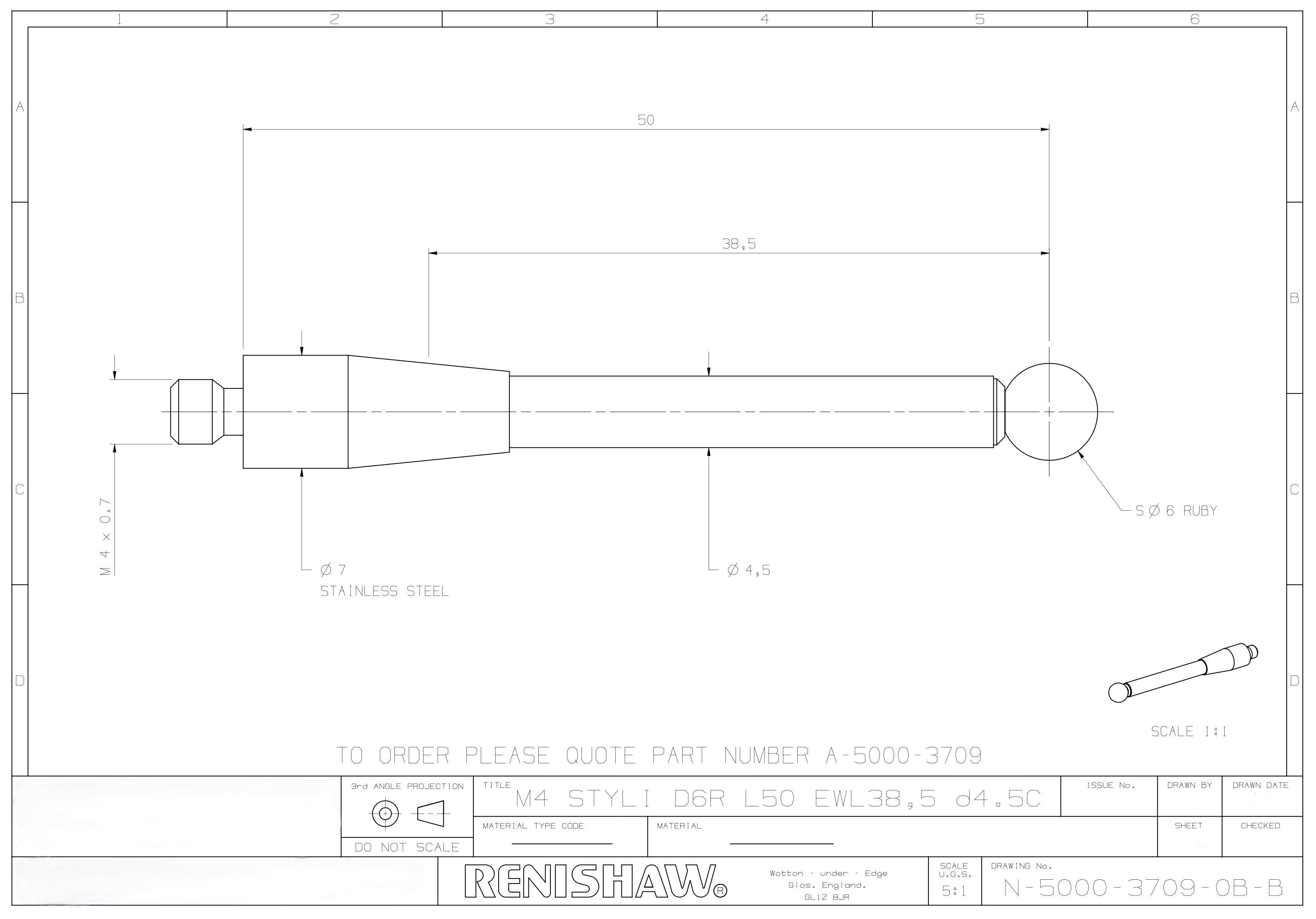

M4 Ø6 mm Ruby Ball, Ceramic Stem, L 50 mm, EWL 38.5 mm
Equivalent to Q-Mark part number: TM4-6053-C

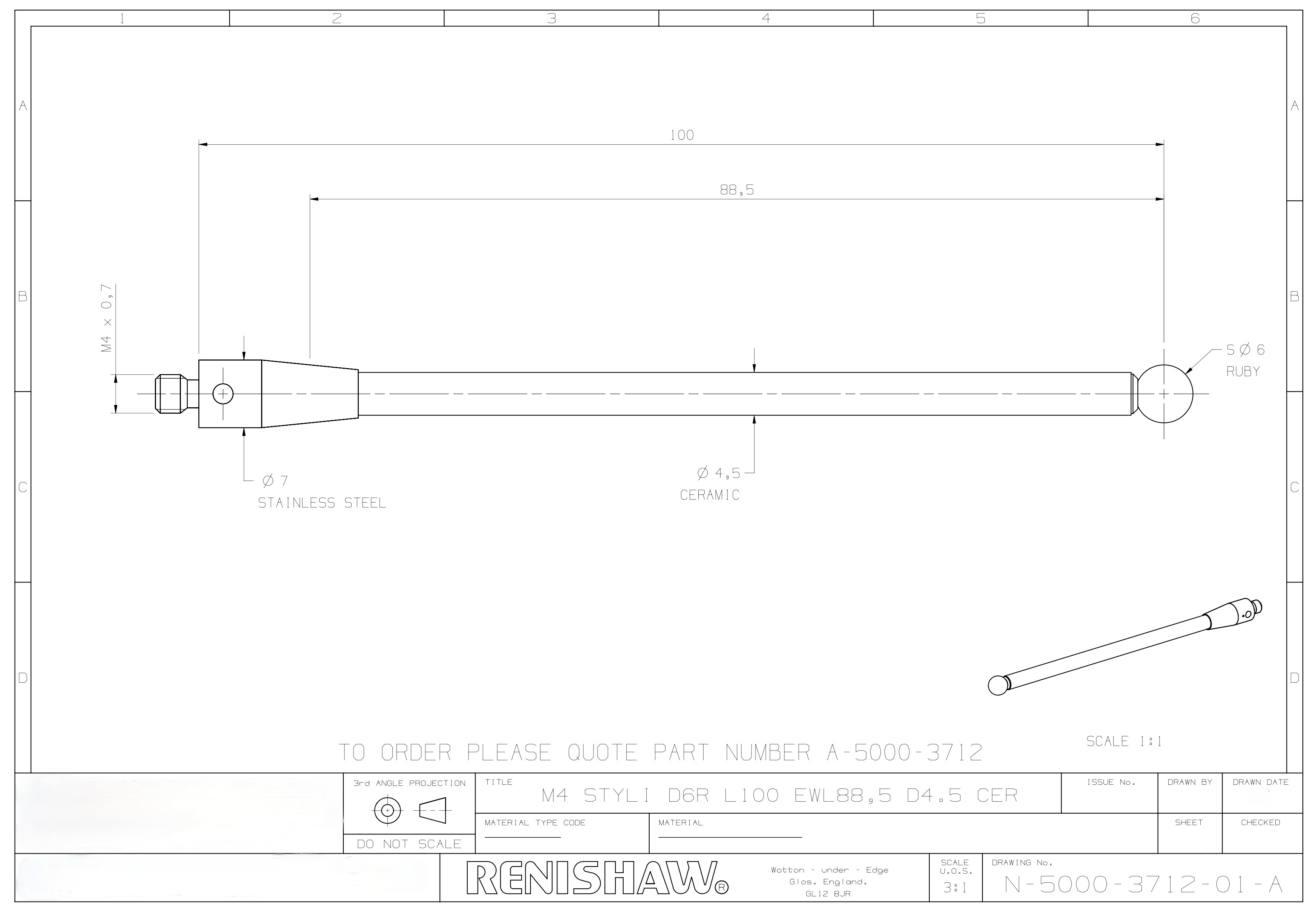

M4 Ø6 mm Ruby Ball, Ceramic Stem, L 100 mm
Equivalent to Mitutoyo part number: K651403
Equivalent to Q-Mark part number: TM4-60103-C
M4 Ø6 mm Ruby Ball, Carbon Fibre Stem, L 200 mm, EWL 188.5 mm
