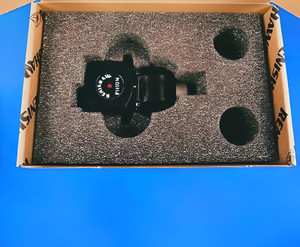

Renishaw Refurbished Aqua Blast PH10M Probe Head with 6 Month Warranty.
Renishaw's last list price for this was $21881.00
We will issue you up to a $2000.00 refund for your old Aqua Blast PH10M probe if it is sent back to us after replacement.
Renishaw's last list price for this probe was $21881.00.
If your application requires custom or stock cabling please contact us prior to purchase.
The range comprises three PH10 models, each of which can carry a range of probes and extensions and can be orientated in 720 repeatable positions, giving access to the most difficult-to-reach workpiece features.
All three variants of the new PH10 heads are now supplied with a revised repeatability specification, down from 0.5 µm (2?) to just 0.4 µm (2?) (specified at a distance of 62 mm), giving users improved positioning at the stylus tip. The new specification heads are physically differentiated by a new 'aqua blast' finish which gives a modern, matt black appearance.
The PH10M can carry long extension bars and complex probes such as SP25M or TP7M. The highly repeatable autojoint allows rapid probe or extension bar changing without the need for re-qualification.
| Length | 117 mm |
| Width | 62 mm |
| Weight | 645 g |
| Probe mounting | Autojoint (multiwire) |
| Head mounting | PH10M shank to suit CMM |
| Suitable controller | PHC10-2 PHC10-3 |
| Repeatability of position | 0.4 µm (0.00002 in) specified at a distance of 62 mm |
| Total no. of positions | 720 |
| Max recommended drive torque | 0.45 Nm |
| Maximum extension bar | 300 mm (11.8 in) using PAA3 extension |
The range comprises three PH10 models, each of which can carry a range of probes and extensions and can be orientated in 720 repeatable positions, giving access to the most difficult-to-reach workpiece features.
All three variants of the new PH10 heads are now supplied with a revised repeatability specification, down from 0.5 µm (2?) to just 0.4 µm (2?) (specified at a distance of 62 mm), giving users improved positioning at the stylus tip. The new specification heads are physically differentiated by a new ‘aqua blast’ finish which gives a modern, matt black appearance.
