We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
Condition:
New: A brand-new, unused, undamaged item in its original packaging
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: PH10M PLUS
MPN: A-5863-4000
Item Description
Renishaw PH10M Plus Motorized CMM Probe Head New with 2 Year Warranty.
The range comprises three PH10 models, each of which can carry a range of probes and extensions and can be orientated in 720 repeatable positions, giving access to the most difficult-to-reach workpiece features.
All three variants of the new PH10 heads are now supplied with a revised repeatability specification, down from 0.5 µm (2?) to just 0.4 µm (2?) (specified at a distance of 62 mm), giving users improved positioning at the stylus tip. The new specification heads are physically differentiated by a new ‘aqua blast’ finish which gives a modern, matt black appearance.
The PH10M PLUS can carry long extension bars and complex probes such as SP25M or TP7M. The highly repeatable autojoint allows rapid probe or extension bar changing without the need for re-qualification.

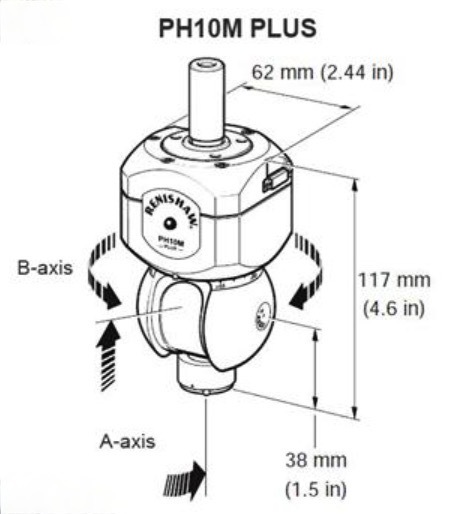

| Length | 117 mm |
| Width | 62 mm |
| Weight | 645 g |
| Probe mounting | Autojoint (multiwire) |
| Head mounting | PH10M shank to suit CMM |
| Suitable controller | PHC10-3 Plus |
| Repeatability of position | 0.4 µm (0.00002 in) specified at a distance of 62 mm |
| Total no. of positions | 720 |
| Max recommended drive torque | 0.45 Nm |
| Maximum extension bar | 300 mm (11.8 in) using PAA3 extension |
We can also supply you with a new controller and custom made cables for your machine
if your application requires a complete retrofit package.
This by far is the best price for a Renishaw PH10M Plus motorized CMM probe head brand new with 2
Year Warranty. Why pay retail prices when you can purchase new with warranty from Metrology Parts.
Purchase with confidence from a verified Paypal retailer. If what you order is not what you receive you
will get a full refund for this sale. Metrology Parts would like the opportunity to earn your business for
this sale and all of your future Renishaw needs. If you have any questions feel free to contact us. With
36 plus years of experience with Renishaw products we can help with all your application needs as well
as your after sales support.
