Renishaw PH10MQ CMM Probe Head & PAA1 Autojoint New in Box with 1 Year Warranty A-1036-0001

MSRP: $22,288.00
$10,765.00
(You save $11,523.00)
(No reviews yet) Write a Review
Weight:
5.00 LBS
Shipping:
Calculated at Checkout

Product Description

Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging.





Country of Manufacture:   UNITED KINGDOM

Brand:   RENISHAW

Model:   PH10MQ

MPN:   A-1036-0001 A-1051-0417





Item Description

Renishaw PH10MQ CMM Probe Head & PAA1 Autojoint New in Box with 1 Year Warranty.


Renishaw List Price $22270.00

About PH10 Models

The range comprises three PH10 models, each of which can carry a range of probes and extensions and can be orientated in 720 repeatable positions, giving access to the most difficult-to-reach workpiece features.

All three variants of the new PH10 heads are now supplied with a revised repeatability specification, down from 0.5 µm (2?) to just 0.4 µm (2?) (specified at a distance of 62 mm), giving users improved positioning at the stylus tip. The new specification heads are physically differentiated by a new ‘aqua blast’ finish which gives a modern, matt black appearance.

All the heads in the range incorporate the following features:

  • 720 indexing positions
  • 0.5 µm (2 s) indexing repeatability
  • 7.5° indexing steps in both axes
  • 300 mm extension bar capability

Additionally, the PH10M and PH10MQ heads offer the following features:

  • Autochange compatibility
  • Multiwired probe compatibility

PH10MQ

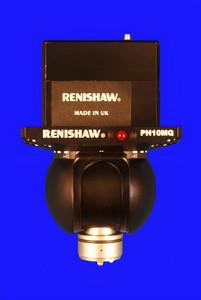

The PH10MQ is a variant of the PH10M that allows the motorised head to be attached directly to the quill with the B axis of the head inside the quill itself. This option provides a neater and shorter probe mount, with only the A axis protruding from the quill.

The Renishaw PH10MQ can be mounted vertically inside the CMMs quill for a greater working envelope by increasing the Z axis travel.

 PH10MQ Specification

Length 73 mm
Width 80 mm
Weight 730 g
Probe mounting Autojoint (multiwire)
Head mounting Direct to quill
Suitable controller PHC10-2
Repeatability of position 0.4 µm (0.00002 in) specified at a distance of 62  mm
Total no. of positions 720
Max recommended drive torque 0.45 Nm
Maximum extension bar 300 mm (11.8 in) using PAA3 extension

PAA1 30 mm Steel Extension Bar


PAA autojoint to M8 extension bars, available in three lengths, allow standard two-wire touch-trigger probes to be fitted to autojointed heads, for example TP20 to PH10M or MIH.

Compatible Heads:

PH10M PLUS
PH10MQ PLUS
PH10M-IQ PLUS
MIH
PH6M
PHS1

Compatible Probes:

TP20
TP200
TP6
TP2

Technical Table

Length (mm) 30
Material Steel





This by far is the best price for a Renishaw PH10MQ CMM Probe Head & PAA1 Autojoint New in Box with 1 Year Warranty.

Why pay retail prices when you can purchase new with 1 Year Warranty from Metrology Parts.

Purchase with confidence from a verified Paypal retailer.

If what you order is not what you receive you will get a full refund for this sale.

Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw needs.

If you have any questions feel free to contact us. With 36 plus years of experience with Renishaw products we can help with all your application needs as well as after sales support.
