We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
ATTENTION
* * * Only third-generation radio probes can be used with the RMI-QE. These are easily identified by a “model QE” marking which is engraved on the probe body. First- and second-generation radio probes, which do not have the ‘model QE’ marking, cannot be used with the RMI-QE * * *
Condition:
Display Model: An item in excellent, new condition with no functional defects. The item is missing the original cardboard insert that holds the interface in the box and was used for demo purposes. Comes with a 6 Month Warranty.
Country Of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: RMI-QE REAR EXIT 15M LEVEL
MPN: A-5687-0060
Item Description
Renishaw RMI-QE 15M Radio Machine Tool Interface Display Model with 6 Month Warranty.

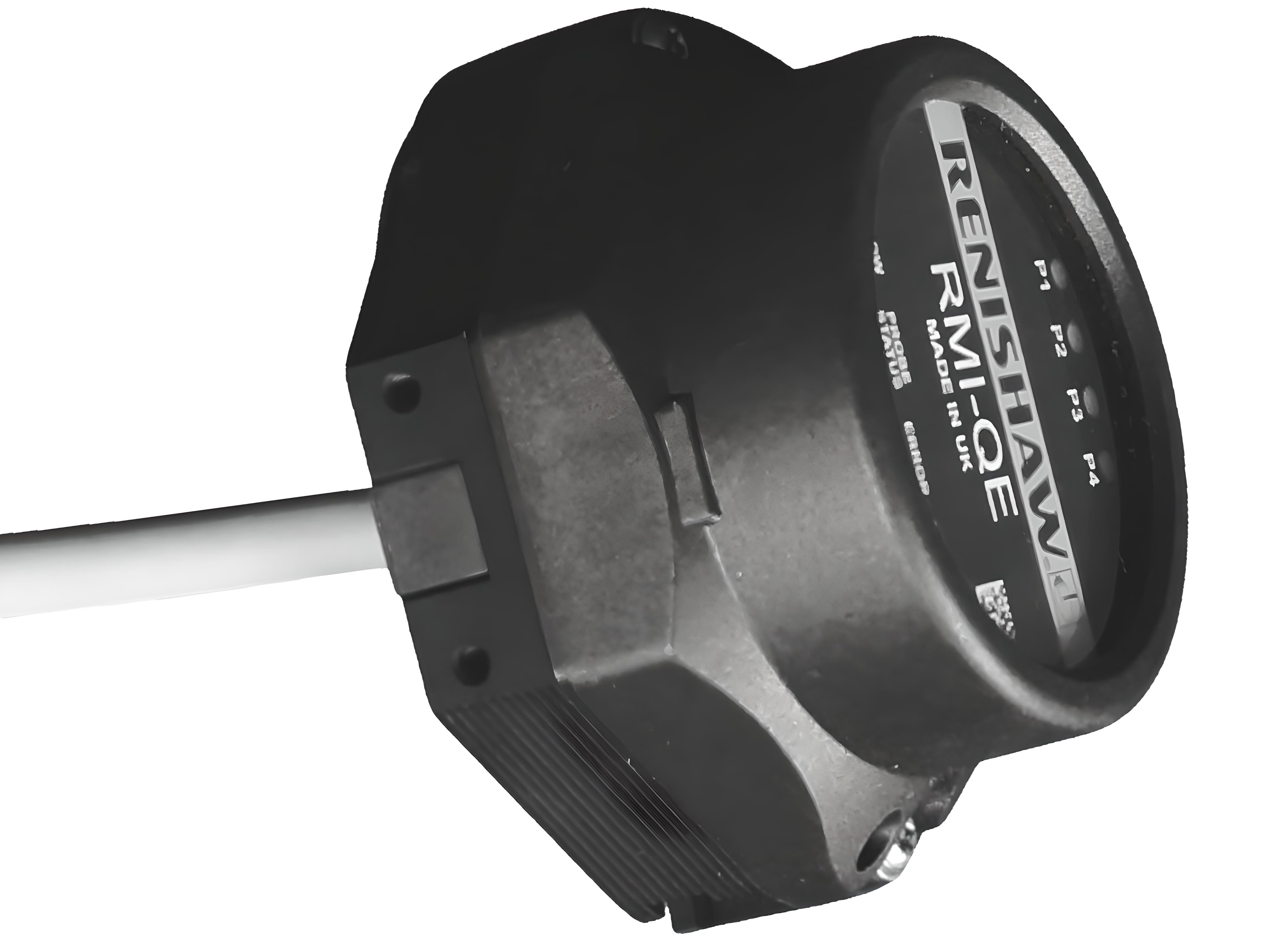

RMI-QE Radio Interface

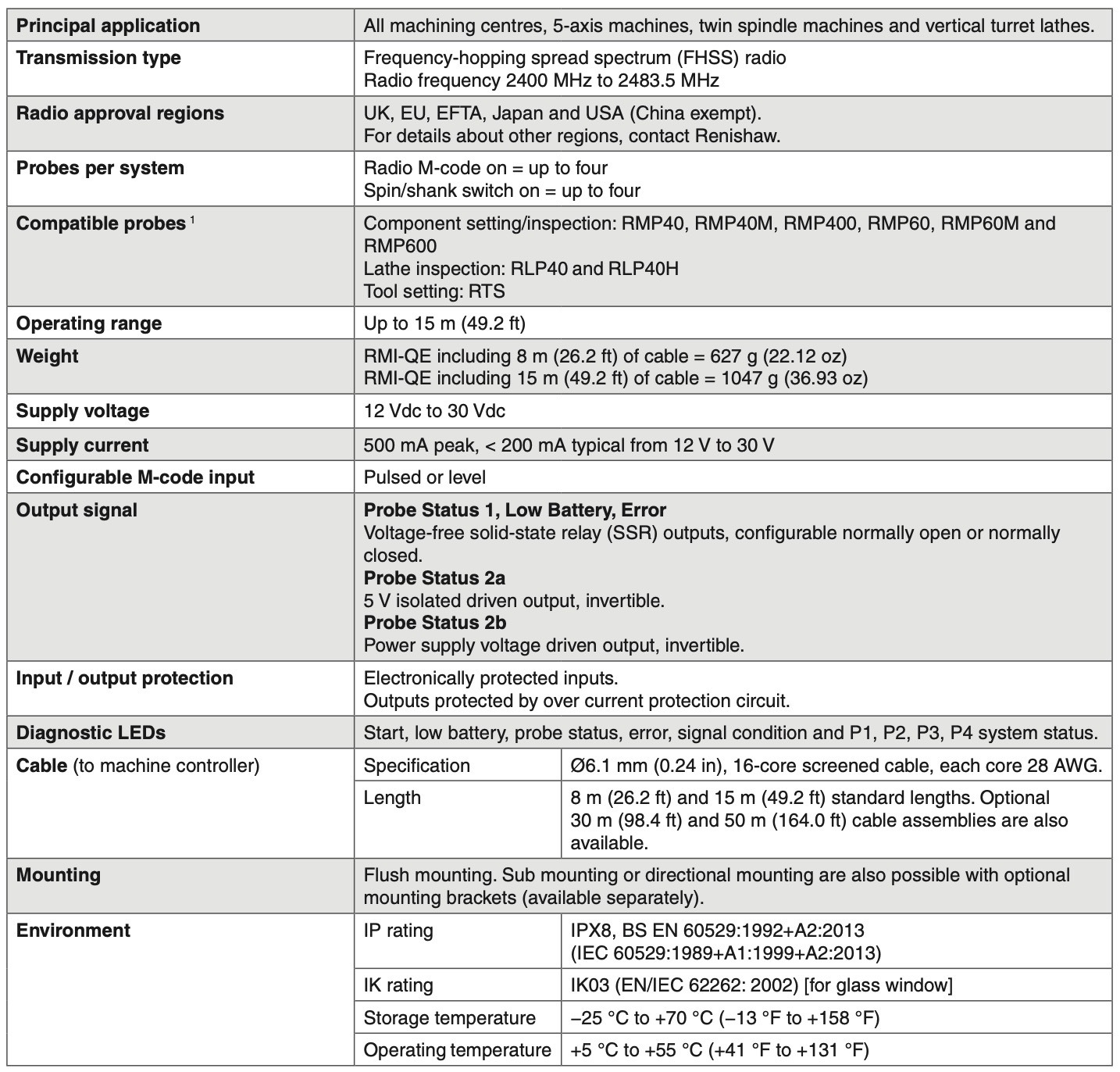

Technical Table
|
Transmission Type |
Radio |

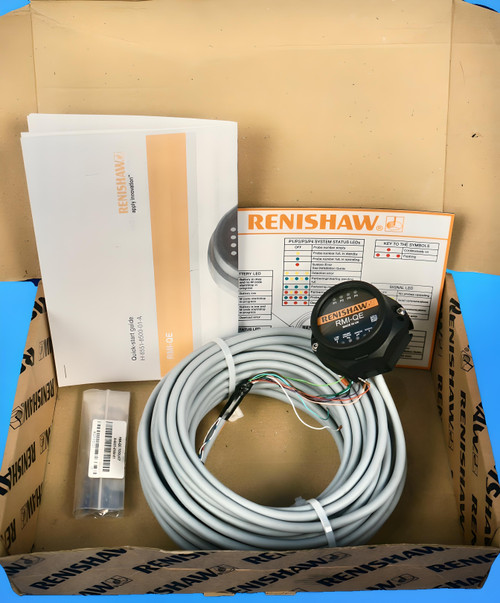

This RMI-QE Interface includes an 15m rear exit cable with a user guide and tool kit.
RMI-QE – A Connected Interface for a Digital Future
Situated inside the machining environment, the RMI-QE is a combined transmitter, receiver and interface unit that converts probe signal information into a form compatible with machine tool controllers.
Its ultra-compact design is over 60% smaller than its predecessor, the RMI-Q, enabling a multitude of flexible mounting options. An updated communication protocol ensures it is future-proofed to support a new generation of Renishaw sensors and smart devices.

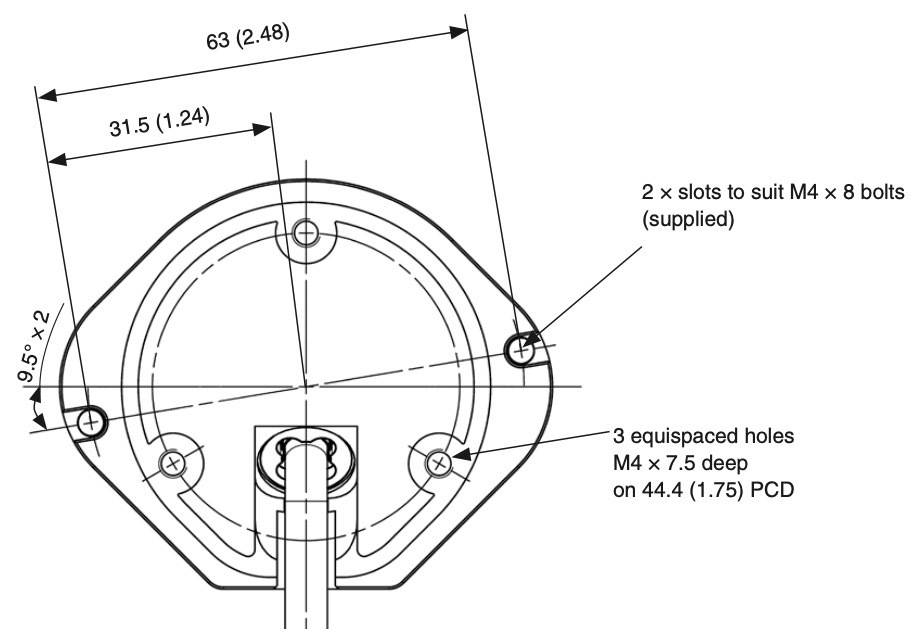

RMI-QE Dimensions
Data Transmission Has Never Been So Reliable
Robust and reliable in busy radio environments, QE series radio systems utilise an updated version of our industry-proven frequency hopping spread spectrum (FHSS) radio transmission technology. This enables our probes and receivers to jump from channel-to-channel while maintaining synchronisation.
Each individual probing system contains a unique frequency hopping pattern. This means that, unlike other protocols which may require manual intervention, our systems will continue to work and co-exist alongside other probes as well other radio sources such as Wi-Fi, Bluetooth® and microwave ovens as and when they enter the same environment.
Operating within the recognised 2.4 GHz frequency band, QE series radio systems are compliant with radio regulations in all major markets.
Industry-Leading Battery Life
Electronics and radio transmission updates to QE series probes deliver an increase in battery life of up to 400%, which when used with the RMI-QE interface, offers industry-leading battery life of up to 5 years based on typical usage. This improvement reduces the amount of batteries required during the product's lifespan, minimising its environmental impact.
Probe Setup App
QE Series Probes Have Been Enhanced with Opti-Logic™ Technology
Accessed via the new Probe Setup app, Opti-Logic technology enables probe settings to be configured using a smartphone. Selectable options displayed on the Probe Setup app are transferred to the probe using pulses of light, simplifying the configuration process. The easy-to-use Opti-Logic technique provides significant user benefits, especially in situations where multiple probes require configuration at the same time.
This is the best price you will find for a Renishaw RMI-QE Rear Exit Tool Interface New with 1 Year
Warranty. Purchase with confidence from a Paypal verified retailer. If what you order is not what you
receive you will be refunded the full purchase price for this sale. Metrology Parts would like the
opportunity to earn your business for this sale and all of your future Renishaw product needs. If you
have any questions feel free to contact us. With 36 plus years of experience with Renishaw products
we can help with all of your application needs as well as your after sales support.
