* * * RMP40 QE * * *
* * * DOES NOT work with a RMI A-4113-0050 Receiver * * *
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging.
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: RMP40-QE
MPN: A-6588-0001
Item Description

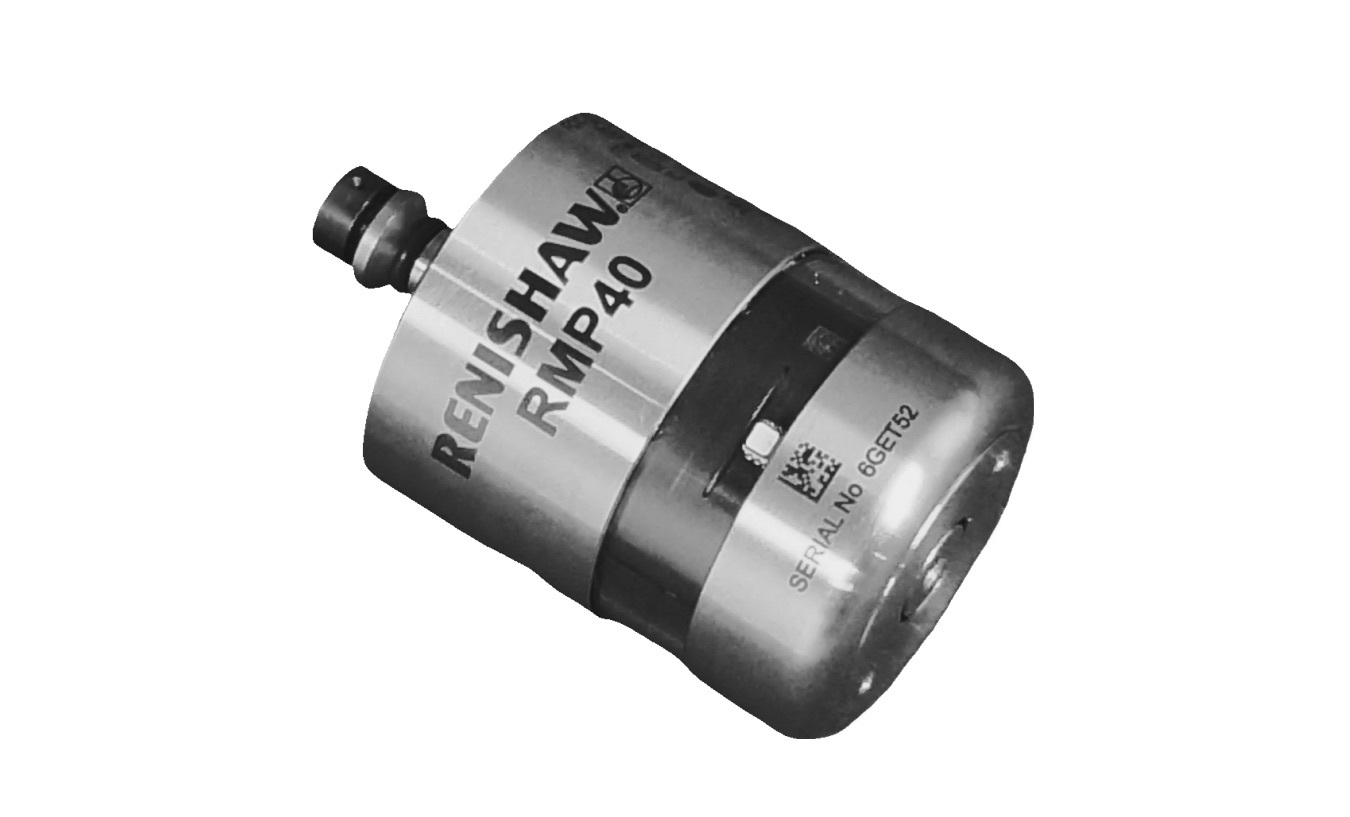

Renishaw RMP40 QE Probe (radio/radio) Probe Kit with 1 Year Warranty.

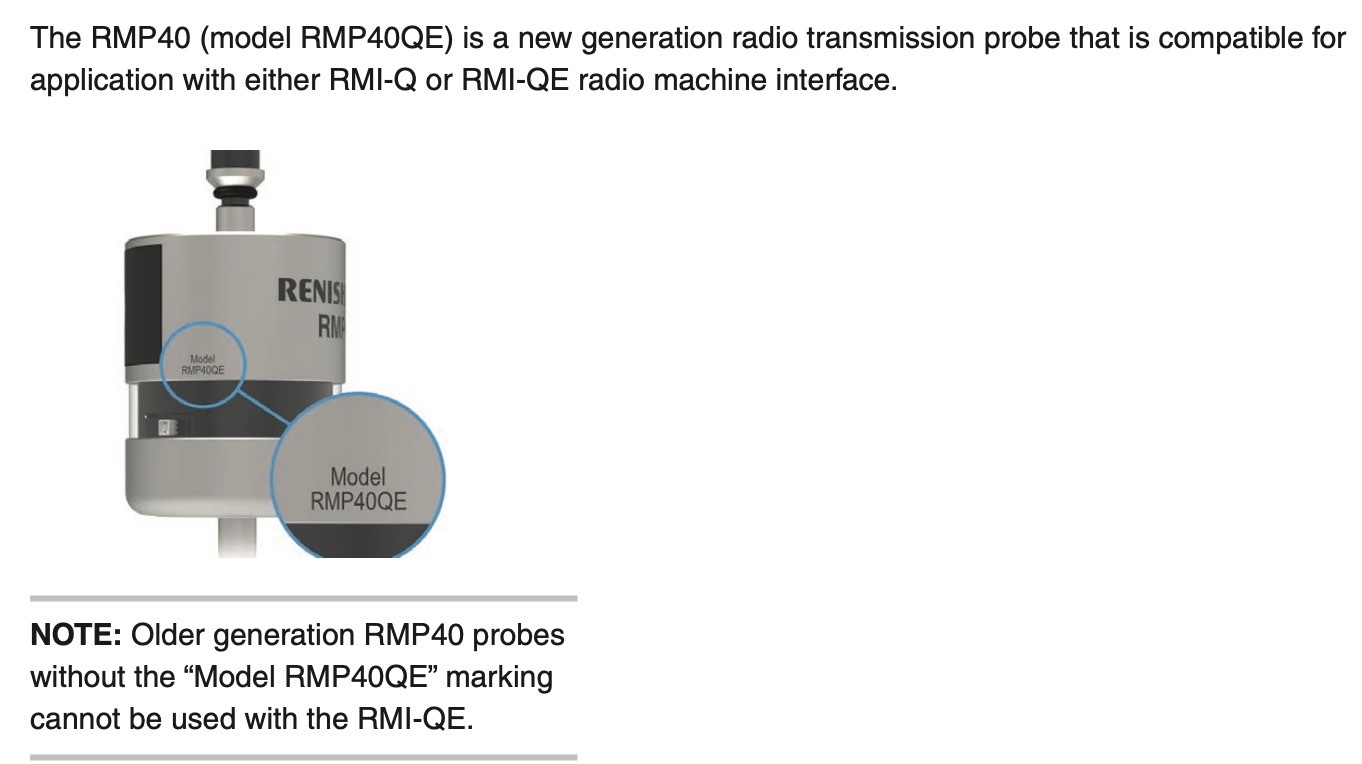

RMP40 QE Introduction
The RMP40 enables automated workpiece inspection and job set-up on multi-tasking machines and machine centres . It is ideally suited to machining centres where line-of-sight between probe and receiver is difficult to achieve or where Z travel is limited.
The RMP40 features an integrated probe module delivering exceptional robustness and generous overtravel .
The RMP40 complies with FCC regulations and operates in the 2 .4 GHz band . It delivers interference-free transmission through the use of hybrid FHSS (frequency-hopping spread spectrum) technology, which allows multiple systems to operate in the same machine shop without risk of cross-interference .
All RMP40 settings are configured using either Opti-LogicTM” or “Trigger LogicTM”. These techniques enable the user to review and subsequently change probe settings .
Configurable settings are:
|
|
|
|
* in RMI-Q Mode Only
RMP40 QE Probe (radio/radio)
For workpiece inspection and job set-up on machining centers and multi-tasking machines
The RMP40 QE is a standard-accuracy touch-trigger probe for automated workpiece set-up and inspection.
The robust transmission protocol and small body make the RMP40 the ideal choice for multi-tasking applications where the line-of-sight between probe and interface cannot always be maintained.
The RMP40 QE probe is compatible with RMI-QE and RMI-Q interfaces. It is not compatible with the RMI interface.
Probe switch-on / switch-off methods are user configurable. The factory-default setting of radio on / radio off can be modified to radio on / timer off (timeout), spin on / spin off, or spin on / timer off (timeout) if required.
System Interface Information
Technical Table
| Transmission type | Radio |
|---|

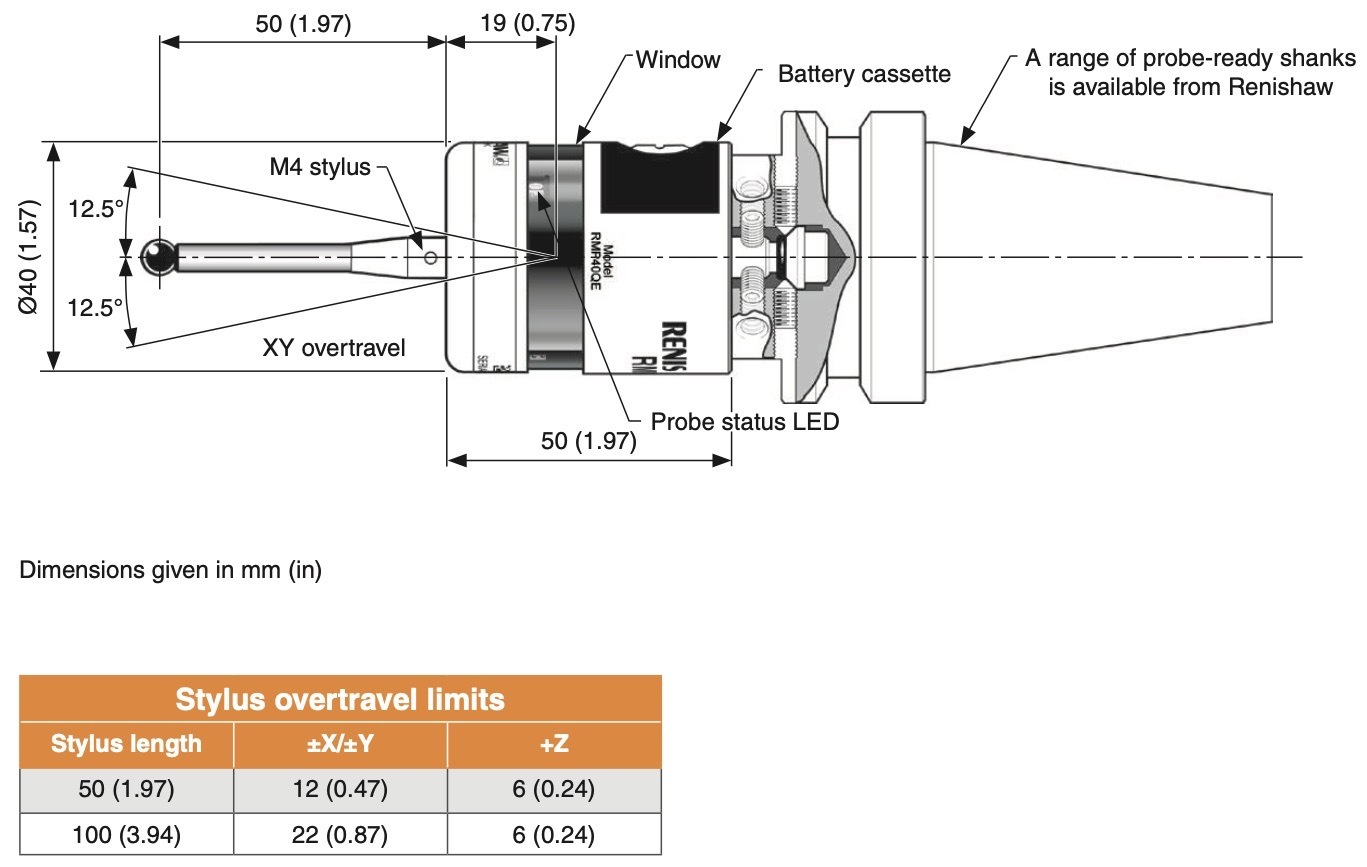

RMP40 QE Dimensions

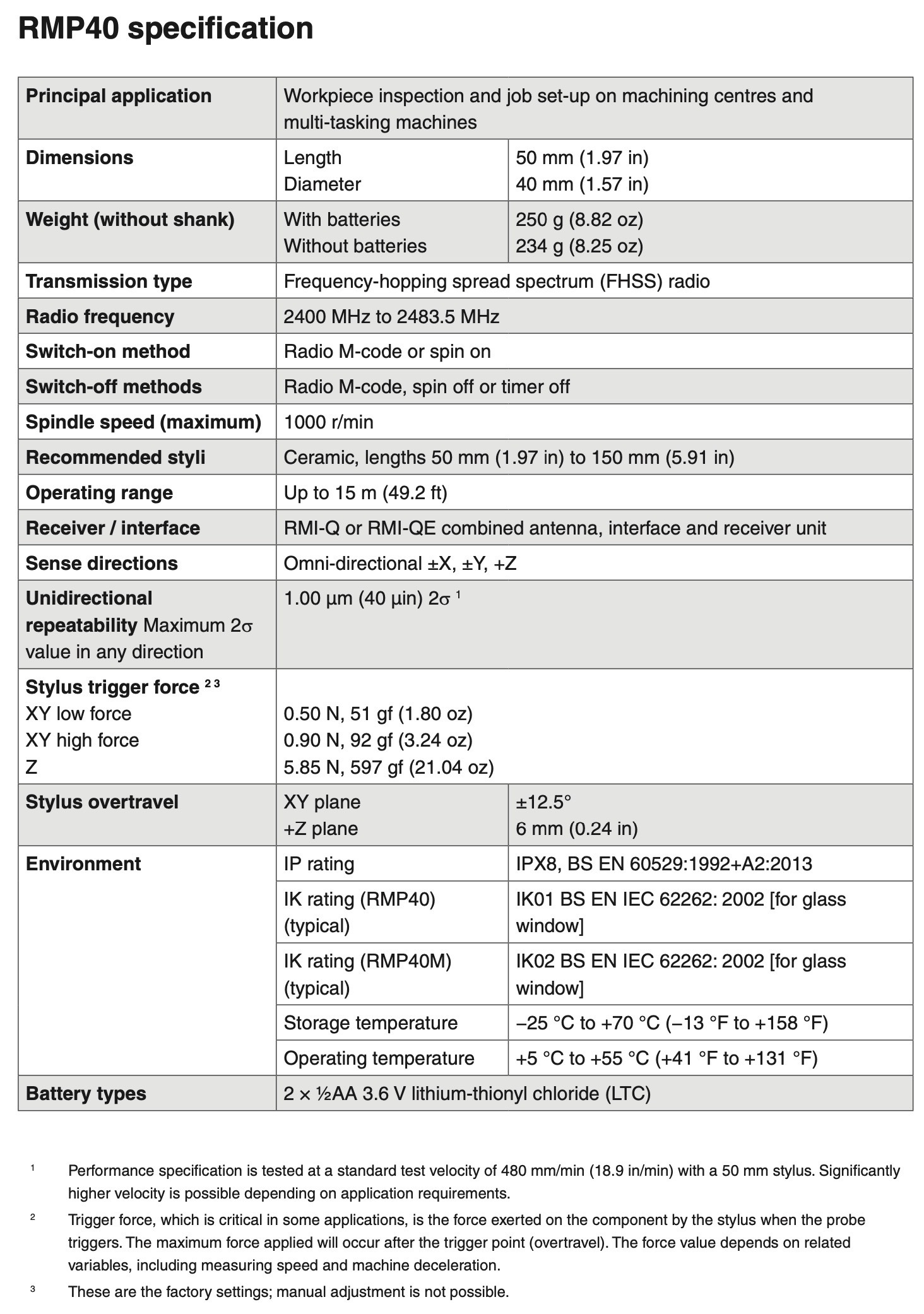

RMP40 QE Specification
Positioning the RMP40 and RMI-Q or RMI-QE
The probe system should be positioned so that the optimum range can be achieved over the full travel of the machine’s axes . Always face the front cover of the RMI-Q or RMI-QE in the general direction of the machining area and the tool magazine, ensuring both are within the performance envelope shown below . To assist in finding the optimum position of the RMI-Q or RMI-QE, the signal quality is displayed on anRMI-Q or RMI-QE signal LED.
Operating envelope * RTS radio tool setter * CNC machining centre spindle
System Installation
RMP40 Inspection Probe
Radio transmission does not require line-of-sight between the probe and transmitter, and will pass through very small gaps and machine tool windows . This allows easy installation inside the machine, as long as the probe and RMI-Q or RMI-QE are kept within the performance envelope shown overleaf .
Coolant and swarf residue accumulating on the RMP40 and RMI-Q or RMI-QE may have a detrimental effect on transmission performance . Wipe clean as often as is necessary to maintain unrestricted transmission. When operating, do not cover the probe glass window, RMI-Q, or RMI-QE with your hands, as this will affect the performance
Installing the RMP40 and RMI-Q or RMI-QE
The RMP40 has a built-in hibernation mode (battery-saving mode) that saves battery life when the RMI-Q is unpowered in “radio-on” (radio-off or timer-off) configurations. The RMP40 goes into hibernation mode 30 seconds after the RMI-Q is unpowered (or the RMP40 is out of range) . When in hibernation mode, the RMP40 checks for a powered RMI-Q every 30 seconds . If found, the RMP40 goes from hibernation mode to standby mode, ready for “radio-on” .
Hibernation mode does not exist when RMP40 (model RMP40QE) is used with an RMI-QE
