Product Description
NOTICE:
The RMP60 (model RMP60QE) is not compatible with the older RMI integrated interface/receiver.
* * * Must have a RMI-Q or RMI-QE Interface/Receiver * * *
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: RMP60 QE
MPN: A-6587-0001
Item Description

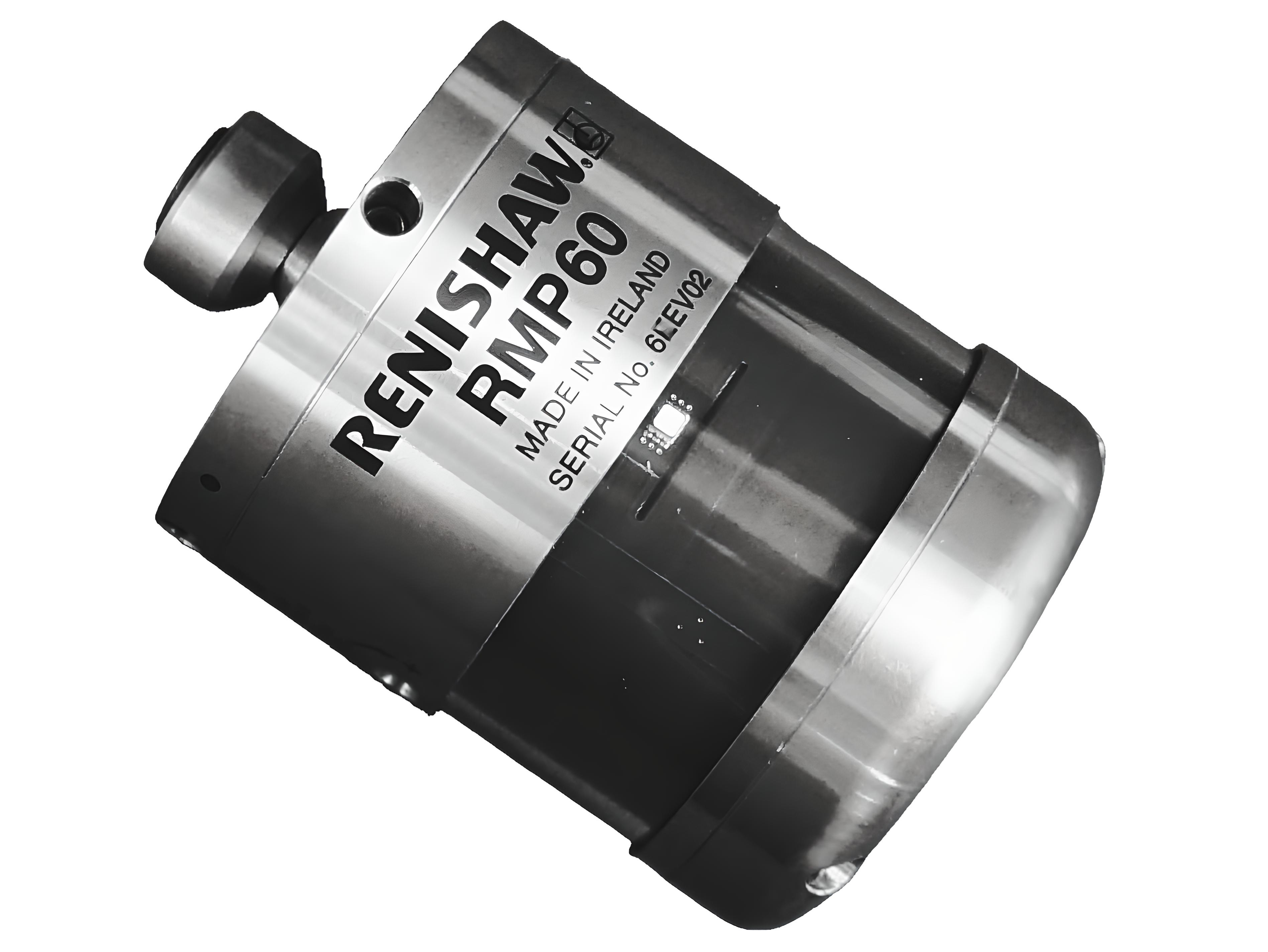

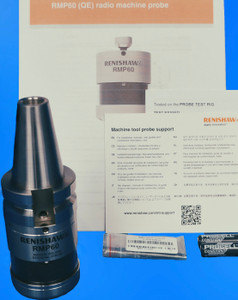

Renishaw RMP60 (QE) Machine Tool Probe New with 1 Year Warranty.
RMP60 QE Probe (radio/radio) Introduction
The RMP60 enables automated workpiece inspection and job set-up on multi-tasking machines, machining centres and gantry machining centres. It is ideally suited to machining centres where line-of-sight between probe and receiver is difficult to achieve. Featuring an integrated probe module the RMP60 delivers exceptional robustness and generous overtravel. The RMP60 complies with worldwide standards and operates in the 2.4 GHz band. It delivers interference-free transmission through the use of hybrid FHSS (frequency-hopping spread spectrum) technology, which allows multiple systems to operate in the same machine shop without risk of interference. The RMP60 can be used alone or form part of a larger system comprised of multiple radio spindle probes and/or tool setters to function with a single interface. All RMP60 settings are configured using either Opti-LogicTM or Trigger LogicTM. These techniques enable the user to review and subsequently change probe settings.
Configurable Settings Are:
• Switch-on / switch-off method • Trigger filter setting
• Hibernation setting*
• Multiple probe mode*
* in RMI-Q mode only.
Technical Table
System Interface
The RMI-Q or RMI-QE is an integrated interface/receiver used to communicate between the RMP60 probe and the machine controller. For more details, refer to the RMI-Q radio machine interface installation guide (Renishaw part no. H-5687-8504) or the RMI-QE radio machine interface installation guide (Renishaw part no. H-6551-8520).
It is necessary that the RMP60 is partnered to either an RMI-Q or RMI-QE. Prior to partnering for the first time, the RMP60 is pre-set to operate in RMI-QE mode. The LED check will display double flashes of red, green, blue. NOTE: The RMP60 (model RMP60QE) is not compatible with the older RMI integrated interface/ receiver.
Performance Envelope
The RMP60 and RMI-Q or RMI-QE must be within each other’s performance envelope, as shown below. The performance envelope shows line-of-sight performance, however, this is not necessary for the RMP60 radio transmission as it will operate with any reflected radio path provided that the reflected path length does not exceed the 15 m (49.2 ft) operating range.
RMP60 QE Specification
Performance specification is tested at a standard test velocity of 480 mm/min (18.9 in/min) with a 50 mm stylus. Significantly higher velocity is possible depending on application requirements. Trigger force, which is critical in some applications, is the force exerted on the component by the stylus when the probe triggers. The maximum force applied will occur after the trigger point (overtravel). The force value depends on related variables including measuring speed, machine deceleration and system latency. Tests carried out using a 50 mm stylus.
This is a great price for a Renishaw RMP60 (QE) Machine Tool Probe New with 1 Year Warranty.
