Renishaw RMP600 Machine Tool Probe - 90 Day Warranty A-5312-0001 A-5312-1011

MSRP: $8,047.00
$4,000.00
(You save $4,047.00)
(No reviews yet) Write a Review
Condition:
Used
Weight:
4.00 LBS
Shipping:
Calculated at Checkout

Product Description

Condition:

Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended.



Country of Manufacture:   UNITED KINGDOM

Brand:   RENISHAW

Model:   RMP600

MPN:   A-5312-0001 A-5312-1011



Item Description

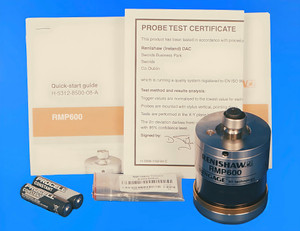

Renishaw RMP600 Radio Transmission Probe Fully Tested with 90 Day Warranty.



RMP600 High-Accuracy Touch Probe

For workpiece inspection and job set-up on multi-tasking machines, machining centers and gantry machining centres

Compact Accuracy

The RMP600 is a compact, high-accuracy touch probe with radio signal transmission which offers all the benefits of automated job set-up as well as the ability to measure complex 3D part geometries on all sizes of machining centres, including multi-tasking machines.

The RMP600 successfully combines patented strain gauge technology with the unique frequency hopping radio transmission system of the RMP60.





*Performance specification is tested at a standard test velocity of 240 mm/min (9.45 in/min). Significantly higher velocity is possible depending on application requirements. Trigger force, which is critical in some applications, is the force exerted on the component by the stylus when the probe triggers. The maximum force applied will occur after the trigger point (overtravel). The force value depends on related variables including measuring speed and machine deceleration. Equipped probes offer ultra low trigger forces.

Stylus overtravel force in XY plane occurs 80 μm after the trigger point and rises by 0.35 N/mm, 36 gf/mm (32 ozf/in) until the machine tool stops (in the high force direction and using a carbon fibre stylus).

Stylus overtravel force in +Z direction occurs 7 μm to 8 μm after the trigger point and rises by 1.5 N/mm, 153 gf/mm (137 ozf/in) until the machine tool stops. These are the factory settings, manual adjustment is not possible.

Features and Benefits

RENGAGE technology, proven and patented.

Secure frequency hopping spread spectrum (FHSS).

Globally recognised 2.4 GHz waveband compliant with radio regulations in all major markets.

Compact design.

3D performance ideal for 5-axis machines.

0.25 m 2 repeatability



Renishaw RMP600 Radio Transmission Probe Fully Tested with 90 Day Warranty. Purchase with

confidence from a PayPal verified retailer. If what you order is not what you receive you will be

refunded the full purchase price for this sale. Metrology Parts would like the opportunity to earn your

business for this sale and all of your future Renishaw product needs. If you have any questions feel

free to contact us. With 36 plus years of experience with Renishaw products we can help with all of

your application needs as well as your after sales support.
