We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging.
Country Of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: RMP600 & RMI-Q REAR EXIT 15M LEVEL
MPN: A-5312-0001 A-5687-0060 A-5312-1011

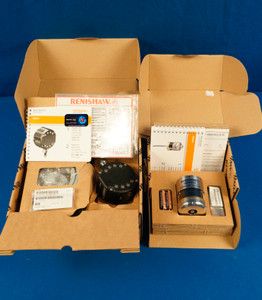

Renishaw RMP600 Radio Transmission Probe & RMI-Q 15M Rear Exit Level Radio Machine Tool Interface New - 1 Year Warranty.
RMP600 High-Accuracy Touch Probe
For workpiece inspection and job set-up on multi-tasking machines, machining centers and gantry machining centres
Compact Accuracy
The RMP600 is a compact, high-accuracy touch probe with radio signal transmission which offers all the benefits of automated job set-up as well as the ability to measure complex 3D part geometries on all sizes of machining centres, including multi-tasking machines.
The RMP600 successfully combines patented strain gauge technology with the unique frequency hopping radio transmission system of the RMP60.
Features and Benefits
Probing Software Options
The following software packages can be used to program probing routines for workpiece set-up and inspection on CNC machining centres.
GoProbe – entry-level package for simple workpiece set-up and tool setting routines.
Inspection Plus – an integrated suite of inspection cycles including vector measurement.
Productivity + Active Editor Pro – a PC-based software package with GUI, allowing users to select features directly from an imported CAD model.
RMI
The RMI is a combined transmitter and receiver unit for use with the RTS, RMP60 , RMP600 and the new RMP40 and RLP40 radio probes. It is designed to be mounted within the machine's working envelope and can be positioned anywhere near the machine, resulting in a quick and simple installation. Unlike the optical transmission systems, line of sight between the probe and receiver is not necessary. The RMP60 RMI system is ideal for retrofitting to existing machines.
RMI-Q Combine Radio Transceiver Specification
| Specification | |
|---|---|
| Principal application | Medium-to-large machining centres, 5-axis machines, twin spindle machines and vertical turret lathes. |
| Transmission type |
Frequency hopping spread spectrum (FHSS) radio. 2.400 - 2.4835 GHz. 2400 - 2483.5 MHz. |
| Transmission range |
Up to 15 m (49.2 ft). |
| Cable |
15 m standard length. Optional 30 m and 50 m cable assemblies are also available. Screened, 13 core (each core 18 x 0.1 mm). |
| Mounting | Mounting bracket allowing directional setting. |
| Sealing | IPX8. |
| Compatible interface | Not required. |
This is the best price you will find for a Renishaw RMP600 & RMI-Q New with 1 Year
Warranty. Purchase with confidence from a Paypal verified retailer. If what you order is not what you
receive you will be refunded the full purchase price for this sale. Metrology Parts would like the
opportunity to earn your business for this sale and all of your future Renishaw product needs. If you
have any questions feel free to contact us. With 36 plus years of experience with Renishaw products
we can help with all of your application needs as well as your after sales support.
