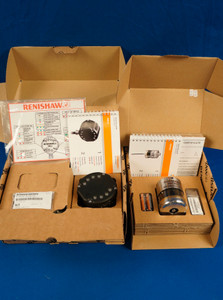

Renishaw RMP600-Q & RMI-Q Side Exit Radio CNC Machine Tool Interface With 1 Year Warranty A-5687-0050 A-5312-0001 A-5312-1011

MSRP: $10,989.00
$7,510.00
(You save $3,479.00)
(No reviews yet) Write a Review
Condition:
New
Weight:
10.00 LBS
Shipping:
Calculated at Checkout

Product Description

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging.



Country Of Manufacture:   UNITED KINGDOM

Brand:   RENISHAW

Model:   RMP600 & RMI-Q SIDE EXIT 15M LEVEL

MPN:   A-5312-0001 A-5687-0050 A-5312-1011



Item Description

Renishaw RMP600 Radio Transmission Probe & RMI-Q 15M Side Exit Level Radio Machine Tool Interface New - 1 Year Warranty.Radio transmission touch probe - RMP600 - RENISHAW - 3D / for machine tools  / compact

RMP600 High-Accuracy Touch Probe

For workpiece inspection and job set-up on multi-tasking machines, machining centers and gantry machining centres

Compact Accuracy

The RMP600 is a compact, high-accuracy touch probe with radio signal transmission which offers all the benefits of automated job set-up as well as the ability to measure complex 3D part geometries on all sizes of machining centres, including multi-tasking machines.

The RMP600 successfully combines patented strain gauge technology with the unique frequency hopping radio transmission system of the RMP60.

Features and Benefits

  • RENGAGE technology, proven and patented.
  • Secure frequency hopping spread spectrum (FHSS).
  • Globally recognised 2.4 GHz waveband compliant with radio regulations in all major markets.
  • Compact design.
  • 3D performance ideal for 5-axis machines
  • 0.25 um 2u repeatability

Probing Software Options

The following software packages can be used to program probing routines for workpiece set-up and inspection on CNC machining centres.

GoProbe – entry-level package for simple workpiece set-up and tool setting routines.

Inspection Plus – an integrated suite of inspection cycles including vector measurement.

Productivity + Active Editor Pro – a PC-based software package with GUI, allowing users to select features directly from an imported CAD model.

RMI

The RMI is a combined transmitter and receiver unit for use with the RTS, RMP60 , RMP600 and the new RMP40 and RLP40 radio probes. It is designed to be mounted within the machine's working envelope and can be positioned anywhere near the machine, resulting in a quick and simple installation. Unlike the optical transmission systems, line of sight between the probe and receiver is not necessary. The RMP60 RMI system is ideal for retrofitting to existing machines.

RMI-Q Combine Radio Transceiver Specification

Specification
Principal application Medium-to-large machining centres, 5-axis machines, twin spindle machines and vertical turret lathes.
Transmission type

Frequency hopping spread spectrum (FHSS) radio.

2.400 - 2.4835 GHz.

2400 - 2483.5 MHz.

Transmission range

Up to 15 m (49.2 ft).

Cable

15 m standard length.

Optional 30 m and 50 m cable assemblies are also available.

Screened, 13 core (each core 18 x 0.1 mm).

Mounting Mounting bracket allowing directional setting.
Sealing IPX8.
Compatible interface Not required.



This is the best price you will find for a Renishaw RMP600 & RMI-Q New with 1 Year

Warranty. Purchase with confidence from a Paypal verified retailer. If what you order is not what you

receive you will be refunded the full purchase price for this sale. Metrology Parts would like the

opportunity to earn your business for this sale and all of your future Renishaw product needs. If you

have any questions feel free to contact us. With 36 plus years of experience with Renishaw products

we can help with all of your application needs as well as your after sales support.
