We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: SCR200 STYLUS CHANGING RACK
MPN: A-1085-0002 STATIC OEM

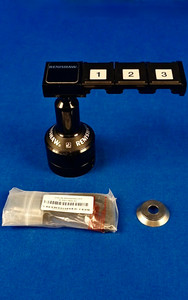

Renishaw SCR200 Static OEM Rack for Video Measuring Machines, Mounting Kit and Location Puck Fully Tested with 90 Day Warranty.
Renishaw List Price $7181.00
This rack functions the same as a SCR200 with no plug in. It has 3 ports and is made specifically for Video Measuring Machines.
There is also an EO module (extended overtravel) which has the same overtravel force
as the SF but provides increased operating range and protection in the probe Z axis.
The TP200 is a electronic probe using strain gauge technology which gives higher accuracy than kinematic touch trigger probes.
The TP200 probe uses micro strain gauge transducers to deliver excellent repeatability and
accurate 3D form measurement even with long styli.
The sensor technology gives sub-micron repeatability and eliminates the lobing characteristics
encountered with kinematic probes. The solid state ASIC electronics within the probe ensure
reliable operation over millions of trigger points.
The TP200B uses the same technology as TP200 but has been designed to have higher
tolerance to vibration. This helps to overcome the problem of 'air' trigger generation which
can arise from vibrations transmitted through the CMM or when using long styli with faster
positioning speeds. Please note that we do not recommend the use of TP200B with the LF
module or cranked/star styli.
| Summary | TP200 | TP200B |
|---|---|---|
| Principal application | DCC CMM where high accuracy is required. | As TP200 but where 'air' trigger events occur. |
| Sense directions | 6-axis: ±X, ±Y, ±Z | 6-axis: ±X, ±Y, ±Z |
| Unidirectional repeatability (2s µm) | Trigger level 1: 0.40 µm (0.000016 in) Trigger level 2: 0.50 µm (0.00002 in) | Trigger level 1: 0.40 µm (0.000016 in) Trigger level 2: 0.50 µm (0.00002 in) |
| XY (2D) form measurement deviation | Trigger level 1: ±0.80 µm (0.000032 in) | Trigger level 1: ±1 µm (0.00004 in) |
| XYZ (3D) form measurement deviation | Trigger level 1: ±1 µm (0.00004 in) Trigger level 2: ±1.40 µm (0.000056 in) | Trigger level 1: ±2.50 µm (0.0001 in) Trigger level 2: ±4 µm (0.00016 in) |
| Repeatability of stylus change | With SCR200: ±0.50 µm (0.00002 in) max. | With SCR200: ±0.50 µm (0.00002 in) max. |
| Trigger force (at stylus tip) | XY plane (all modules): 0.02 N Z axis (all modules): 0.07 N | XY plane (all modules): 0.02 N Z axis (all modules): 0.07 N |
| Overtravel force (@ 0.50 mm displacement) | XY plane (SF/EO module): 0.2 N to 0.4 N | XY plane (SF/EO module): 0.2 N to 0.4 N |
| Weight (probe sensor and module) | 22 g (0.78 oz) | 22 g (0.78 oz) |
| Maximum extension (if on a PH10 series head) | 300 mm (11.81 in) | 300 mm (11.81 in) |
| Maximum recommended stylus length (M2 styli range) | SF/EO module: 50 mm (1.97 in) steel to 100 mm (3.94 in) GF LF module: 20 mm (0.79 in) steel to 50 mm (1.97 in) GF | SF/EO module: 50 mm (1.97 in) steel to 100 mm (3.94 in) GF LF module: 20 mm (0.79 in) steel to 50 mm (1.97 in) GF |
| Mounting method | M8 thread | M8 thread |
| Suitable interface | PI200, UCC | PI200, UCC |
| Stylus module changing rack | Automatic: SCR200 | Automatic: SCR200 |
| Stylus range | M2 | M2 |
| Module | SF (standard force) | LF (low force) | EO (extended overtravel) |
|---|---|---|---|
| Application | General use. | Small diameter stylus balls or where minimum force is essential. | Extra overtravel to enable the CMM to stop safely from higher probing speeds. |
| Comments | Styli up to 100 mm long and ball diameter > 1 mm. | Balls less than 1 mm diameter. | Same overtravel force as SF. Extra 8 mm of overtravel in probe Z axis. |
This is by the far the best price you will find on a Renishaw SCR200 Static OEM Rack for Video Measuring Machines
, Mounting Kit and Location Puck Fully Tested with 90 Day Warranty.
Why pay retail prices when you can purchase with warranty from Metrology Parts.
Purchase with confidence from a Paypal verified retailer with 90 Day Warranty
If what you order is not what you receive you will be refunded the full purchase price for this sale.
Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw needs.
If you have any questions feel free to contact us. With 36 plus years of experience with Renishaw products we can help with all of your application needs as well as your after sales support.
