We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: SCR600 STYLUS CHANGING RACK
MPN: A-2098-0255
Item Description

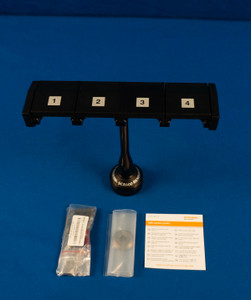

Renishaw SCR600 Stylus Module Changing New with 1 Year Warranty.
Rack for SP600 Analog Scanning probes
The SCR600 holds up to four SP600 stylus modules for automatic changing and protects them from airborne contaminants. The SCR600 is easily mounted onto any CMM. Setting the SCR600 rack alignment and probe module changing co-ordinates requires minimal effort. SCR600 does not require any electrical connection for operation. It is protected from overtravel (in the probe entry direction) by a mechanism in the base which can be manually reset. The SCR600 houses up to four SP600 stylus modules per rack and any number of racks can be used in a system.
Specification
| Specification | |
|---|---|
| Height | 225 mm (8.86 in) |
| Width | 235 mm (9.25 in) |
There are three, highly versatile, SP600 scanning probe systems. Each system includes the probe itself, a PC interface card and a stylus module changing rack.
| SP600 | SP600M | SP600Q | |
|---|---|---|---|
 |  |  | |
| Length | 89 mm | 107.5 mm | 98 mm |
| Weight | 172 g | 216 g | 299 g |
| Mounting | Adaptors to suit clutch, shank adaptor or CMM shank | Renishaw autojoint: PH10M, PH10MQ or PH6M | Direct in-quill mount to CMM |
High speed scanning up to 300 mm/s, fast point measurement and high frequency response.
Low probing forces give maximum application flexibility.
Extremely robust design will withstand moderate collisions.
Low cost of ownership with an excellent product life, exceeding 50,000 hours in operation.
Low mass, high structural stiffness and friction free viscous damping give excellent dynamic performance characteristics.
No electrical connections required
Overtravel protection in the probe entry direction by a mechanism in the base which can be manually reset
Holds up to four SH600 stylus holders per rack
Any number of racks can be used in a system
| Suitable interface | AC1 or AC2 analogue converter PC card (optional) |
| Probe attributes | 3-axis measurement (X, Y, Z) linear and parallel motion in all axes |
| Measurement range | ±1 mm (±0.04 in) (X, Y, Z) |
| Overtravel range | X, Y and –Z protected by a kinematic joint |
| Resolution | 0.1 µm (0.000004 in) with optional AC2 interface card 0.5 µm (0.00002 in) with optional AC1 interface card |
| Spring rate | 1.2 N/mm nominal (X, Y and Z) |
| Damping | 20% (X, Y, Z) typical at 23 °C |
| Operating temperature | 10 °C (50 °F) to 40 °C (104 °F) |
| Power supply | +12 V to -12 V, 5 V (±10%) |
| Outputs (X,Y,Z) | Analogue proportional voltage output scaling: 4 V to 8.5 V/mm |
| Stylus range | M4 |
This is a great price for a Renishaw SCR600 Stylus Module Changing Rack New with 1 Year Warranty.
Purchase with confidence from a Paypal verified retailer with Warranty. If what you order is not
what you receive you will be refunded the full purchase price for this sale. Metrology Parts would
like the opportunity to earn your business for this sale and all of your future Renishaw product needs.
If you have any questions feel free to ask. With 36 plus years of experience with Renishaw products
we can help with all of your application needs as well as your after sales support.
