Renishaw SH600 STD Kit Display Model - 6 Month Warranty A-2098-0284

Product Description

Condition:

New – Open box: An item in good, new condition with no functional defects. The item has original packaging and was used for demo purposes. The item comes with a 6 Month Warranty.

Country of Manufacture:   UNITED KINGDOM

Brand:   RENISHAW

Model:   SH600 STD KIT

MPN:   A-2098-0284

Item Description

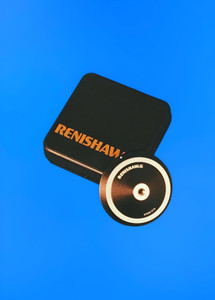

Renishaw SH600 STD Kit Display Model with 6 Month Warranty.

SH600 Stylus Holder

The SP600 / M / Q comprises the main body and a detachable stylus holder. The stylus holder is kinematically located onto the probe body to provide repeatable positioning of the stylus, and removes the requirement to re-qualify each stylus arrangement between holder changes. There are two variants of stylus holders in the range, SH600-STD and SH600-EXT. Both of these designs offer the ability to manually or automatically change the stylus on the SP600 probe allowing for stylus optimisation.

SH600 - STD

This product is fitted to all SP600 and SP600M probes and is compatible with the SP600Q probe. The SH600-STD offers the following capabilities

• M4 stylus compatibility
• M3, M2 stylus compatibility using appropriate adaptors
• Up to 200 mm stylus length can be accommodated.

Effective crash protection is achieved by either the stylus holder becoming detached during a collision, or by setting a higher stylus deflection to alert the CMM of an unexpected collision. In this event, the robustness of the probe means that a simple re-qualification of the probe and stylus arrangement will enable work to continue.

SH600 - EXT

This product is fitted to all SP600Q probes and is compatible with SP600 and SP600M probes (manufactured after May 2002). The SH600-EXT offers the following capabilities

• M4 stylus compatibility
• M3, M2 stylus compatibility using appropriate adaptors
• Up to 300 mm stylus length capability

The SP600 uses standard Renishaw M4 thread styli, that thread into the stylus holder (SH600-STD or SH600-EXT). Styli can be changed manually by screw or by exchange of the kinematic stylus holder using the SCR600 or SCP600 stylus change rack. Always use the Renishaw stylus spanner provided to change styli to avoid damage to the stylus holder or stylus.

The SP600M

 Is an autojoined, multiwired analog scanning probe which enables a CMM to gather large amounts of data very rapidly for inspection or digitizing purposes. Low spring forces allow scanning of finely detailed parts. The probe can be used with a PH10M or PH6M probe head and is compatible with the Renishaw autochange system.
