We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: TP20
MPN: A-1371-0295

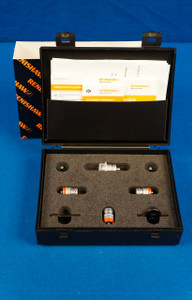

Fully tested in box with 90 day warranty Renishaw TP20 touch probe Kit 6 with two Extended Force Modules.
Current list price for this item is $4059.00
The TP20 is a compact 5-way, or 6-way, kinematic touch-trigger probe system. The two-piece design, comprising probe body and detachable stylus module(s), connected using a highly repeatable magnetic kinematic coupling. This provides the facility to change stylus configurations either manually or automatically without the need for requalification of the stylus tips, thereby giving significant time savings in inspection routines.
Modules offering a range of trigger forces allow the probe performance to be best matched to the measurement task. A set of probe extensions is also available, as is a 6-way module. The stylus mounting thread accepts styli from the Renishaw M2 range.
The TP20 system is easily retrofitted and is compatible with existing touch trigger probe interfaces, extensions and adaptors.
The system components are:
| Sense directions | All modules except 6W 6W | ±X, ±Y, +Z ±X, ±Y, ±Z |
| Suitable interface | PI4-2, PI7-2, PI200, UCC | |
| Pre-travel variation | LF SF / EM1 / EM2 MF EF 6W | ±0.60 µm (± 0.000023 in) ±0.80 µm (± 0.000032 in) ±1.00 µm (± 0.000039 in) ±2.00 µm (± 0.000079 in) ±1.50 µm (±0.000058 in) |
| Unidirectional repeatability | LF / SF / EM1 / EM2 MF EF 6W | ±0.35 µm (± 0.000014 in) ±0.50 µm (± 0.000020 in) ±0.65 µm (± 0.000026 in) ±0.80 µm (± 0.000032 in) |
| Repeatability of stylus changing | MCR20 Manual | ±0.50 µm (± 0.000020 in) ±1.00µm (± 0.000040 in) |
| Stylus range | M2 | |
| Mounting method | M8 thread |
A range of seven, application specific, probe modules is available and are identified by coloured caps.
| Module | Application | Trigger forces | Stylus lengths | |
|---|---|---|---|---|
| SF - Standard force |  | Suited to the majority of applications | XY: 0.08 N Z: 0.75 N Stylus: 10 mm | 10 - 50 mm GF |
| LF - Low force |  | Low trigger forces applications - e.g. rubber seals | XY: 0.055 N Z: 0.65 N Stylus: 10 mm | 10 - 30 mm |
| MF - Medium force |  | Where a higher trigger force than standard is required | XY: 0.1 N Z: 1.9 N Stylus: 25 mm | 10 - 60 mm |
| EF - Extended force |  | Large stylus assemblies or where vibration causes spurious 'air' triggers | XY: 0.1 N Z: 3.2N Stylus: 10 mm | 10 - 60 mm |
| 6W - 6-way |  | Measurement in the –Z direction - e.g. undercuts | XY: 0.14 N Z: 1.6N Stylus: 10 mm | 10 - 50 mm |
| EM1 STD - 50 mm extension |  | Majority of applications requiring a 50 mm extension | XY: 0.08 N Z: 0.75 N Stylus: 10 mm | 10 - 50 mm |
| EM2 STD - 75 mm extension |  | Majority of applications requiring a 75 mm extension | XY: 0.08 N Z: 0.75 N Stylus: 10 mm | 10 - 50 mm |
You may also substitute a Non-Inhibit body with your order, change force or add more modules.
This is by far the best price you will find on a used in box with 90 Day Warranty Renishaw TP20 kit 6 with 2 stylus modules.
Why pay retail prices when you can purchase with warranty from Metrology Parts.
Purchase with confidence from a Paypal verified retailer.
If what you order is not what you receive you will be refunded the full purchase price of this sale.
Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw product needs.
If you have any questions feel free to contact us. With 35 plus years of experience with Renishaw products we can help with all your application needs as well as your after sales support.
