We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: TP20
MPN: A-1371-0640

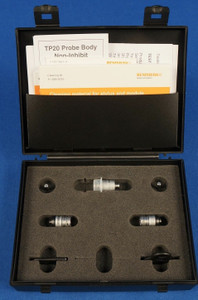

Renishaw TP20 Non-Inhibit Touch Probe Kit 1 & 2x TP20 Standard Force Modules Fully Tested with 90 Day Warranty.
The Non-Inhibit version of the TP20 has been designed to better perform than the standard TP20 Probe Body where probe operation is within a magnetic field.
Non-Inhibit Touch Probe Body
The Non-Inhibit version of the TP20 has been designed to better perform than the Standard TP20 where probe operation is within a magnetic field. The TP20 NI Probe body is not affected by magnetic fields and the probe trigger must be inhibited through software during change cycles using the MCR20
TP20 Standard Force ModuleThe TP20 is a compact module changing touch-trigger probe. The two-piece design, comprising of a probe body and detachable stylus module(s), allows the use of a range of stylus configurations and extensions to access features on complex parts. Modules can be changed manually or automatically without the need for requalification of the stylus tip. The standard force probe module is identified by a black cap. This probe module is suited to the majority of applications requiring extensions up to 50 mm long.
The recommended stylus limits for the standard force probe module are:
Straight styli up to 50 mm long
Star and cranked styli up to 20 mm offset
The TP20 is a compact 5-way, or 6-way, kinematic touch-trigger probe system. The two-piece design, comprising probe body and detachable stylus module(s), connected using a highly repeatable magnetic kinematic coupling. This provides the facility to change stylus configurations either manually or automatically without the need for requalification of the stylus tips, thereby giving significant time savings in inspection routines.
Modules offering a range of trigger forces allow the probe performance to be best matched to the measurement task. A set of probe extensions is also available. The stylus mounting thread accepts styli from the Renishaw M2 range.
This is by far the best price you will find on a Renishaw TP20 Non-Inhibit Probe Kit 1 with 2
TP20 SF Modules Fully Tested with 90 Day Warranty. Why pay retail prices when you can
purchase with warranty from Metrology Parts. Purchase with confidence from a Paypal verified
retailer. If what you order is not what you receive you will be refunded the full purchase price
of this sale. Metrology Parts would like the opportunity to earn your business for this sale and
all of your future Renishaw product needs. If you have any questions feel free to contact us.
With 36 plus years of experience with Renishaw products we can help with all your application
needs as well as your after sales support.
