We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: TP6A
MPN: A-1039-0028

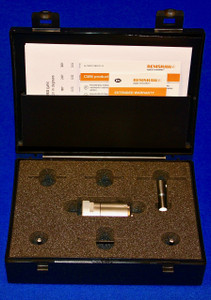

Used and in great shape Renishaw TP6A touch probe with 90 day warranty.
This Renishaw TP6A is tested to be fully functional and meets Renishaws original specifications
Current list price for this item is $4185.00
The TP6 and TP6A probes have different probe mount options (M8 thread and Autojoint respectively). Both probes are kinematic touch-trigger probes and have manually adjustable trigger force for optimum probe performance with different stylus configurations.
They can carry long styli (M3 range), are 25 mm (1 inch) in diameter, providing substantial overtravel for excellent robustness.
| Specification summary | TP6 | TP6A |
|---|---|---|
| Principle application | Robust universal DCC and manual CMMs. | As TP6 but with fast probe exchange without requalification. |
| Sense directions | 5-axis: ±X, ±Y, +Z | 5-axis: ±X, ±Y, +Z |
| Unidirectional repeatability maximum (2s µm) (at stylus tip) | 0.35 µm (0.000014 in) | 0.35 µm (0.000014 in) |
| Pre-travel variation 360° (XY plane) | ±1 µm (±0.00004 in) | ±1 µm (±0.00004 in) |
| Weight | 56 g (1.98 oz) | 76 g (2.68 oz) |
| Stylus range | M3 | M3 |
| Stylus force range (adjustable) | 0.11 N - 0.3 N | 0.11 N - 0.3 N |
| Stylus force (set by Renishaw) | 0.11 N - 0.13 N | 0.11 N - 0.13 N |
| Stylus overtravel (typical) |
XY plane: ±22° +Z axis: 5.5 mm (0.22 in) @ 0.11 N |
XY plane: ±22° +Z axis: 5.5 mm (0.22 in) @ 0.11 N |
| Maximum extension on PH10 series | 200 mm (7.87 in) | 200 mm (7.87 in) |
| Mounting method | M8 thread | Autojoint |
| Suitable interface | PI 4-2, PI 7-2, PI 200, UCC | PI 4-2, PI 7-2, PI 200, UCC |
Why pay retail prices when you can purchase with warranty from Metrology Parts.
Purchase with confidence from a Paypal verified retailer.
If what you order is not what you receive you will be refunded the full price for this sale.
Metrology parts would like the opportunity to earn your business for this sale and all of your future Renishaw product needs.
If you have any questions feel free to contact us. With 25 plus years of experience with Renishaw products we can help with all of your application needs as well as your after sales support.
